Operating Temperature: | -30℃ - 70℃ | Copper Foil: | 35UM |
---|---|---|---|
Pcba Service: | SMD SMT DIP Component Assembly | Copper Thickness: | 1oz-3oz |
Hole Tolerance: | PTH: ±0.075, NTPH: ±0.05 | Pcb Size: | Can Be Customized |
Surface Finishes: | OSP, HASL, HASL Lf, Immersion Gold, Etc. | Service: | One-stop Service |
The LED PCB Board is an essential component for various LED light board applications, providing the necessary structure and connectivity for efficient operation. This product offers a range of features and attributes that make it ideal for use in LED display board setups.
The LED PCB Board is designed with Profiling Punching capabilities, including Routing, V-CUT, and Beveling. This ensures precise shaping and customization according to specific requirements, allowing for seamless integration into LED light board systems.
With an Operating Temperature range of -30℃ to 70℃, the LED PCB Board is suitable for a wide range of environments and applications. Whether used in indoor or outdoor settings, this product can withstand varying temperatures to maintain optimal performance.
When it comes to accuracy and consistency, the LED PCB Board offers reliable Hole Tolerance specifications. With PTH holes having a tolerance of ±0.075 and NTPH holes with a tolerance of ±0.05, this product ensures precise alignment and secure placement of components for LED display board assemblies.
The LED PCB Board comes in a thickness range of 1.2mm to 1.6mm, providing flexibility in design and installation. This versatility allows for efficient space utilization and compatibility with different LED light board configurations.
For enhanced performance and durability, the LED PCB Board is available with a variety of Surface Finishes options. These include OSP (Organic Solderability Preservatives), HASL (Hot Air Solder Leveling), HASL Lf (Lead-Free HASL), Immersion Gold, and more. Each finish offers unique benefits in terms of conductivity, corrosion resistance, and solderability, ensuring the longevity and reliability of LED display board setups.
Thickness | 1.2mm-1.6mm |
Max. Panel Size | 600mm X 1200mm |
Service | One-stop Service |
Copper Thickness | 1oz-3oz |
Raw Material | FR4 |
Pcb Size | Can Be Customized |
Samples | Yes |
Copper Foil | 35UM |
Hole Tolerance | PTH: ±0.075, NTPH: ±0.05 |
Operating Temperature | -30℃ - 70℃ |
The LED PCB BOARD by phoenix is a versatile product suitable for a wide range of applications and scenarios. With its high-quality Copper Foil of 35UM and durable Raw Material made of FR4, this product is designed to meet the demanding requirements of various industries.
One of the key features of this LED PCB BOARD is its ability to operate efficiently in a wide range of temperatures, from -30℃ to 70℃. This makes it ideal for use in both hot and cold environments, ensuring reliable performance in different climate conditions.
The Thickness of the LED PCB BOARD ranges from 1.2mm to 1.6mm, providing flexibility for different project requirements. Whether you need a thinner board for a compact design or a thicker board for more robust applications, this product can meet your needs.

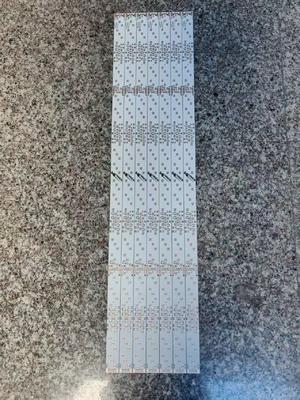

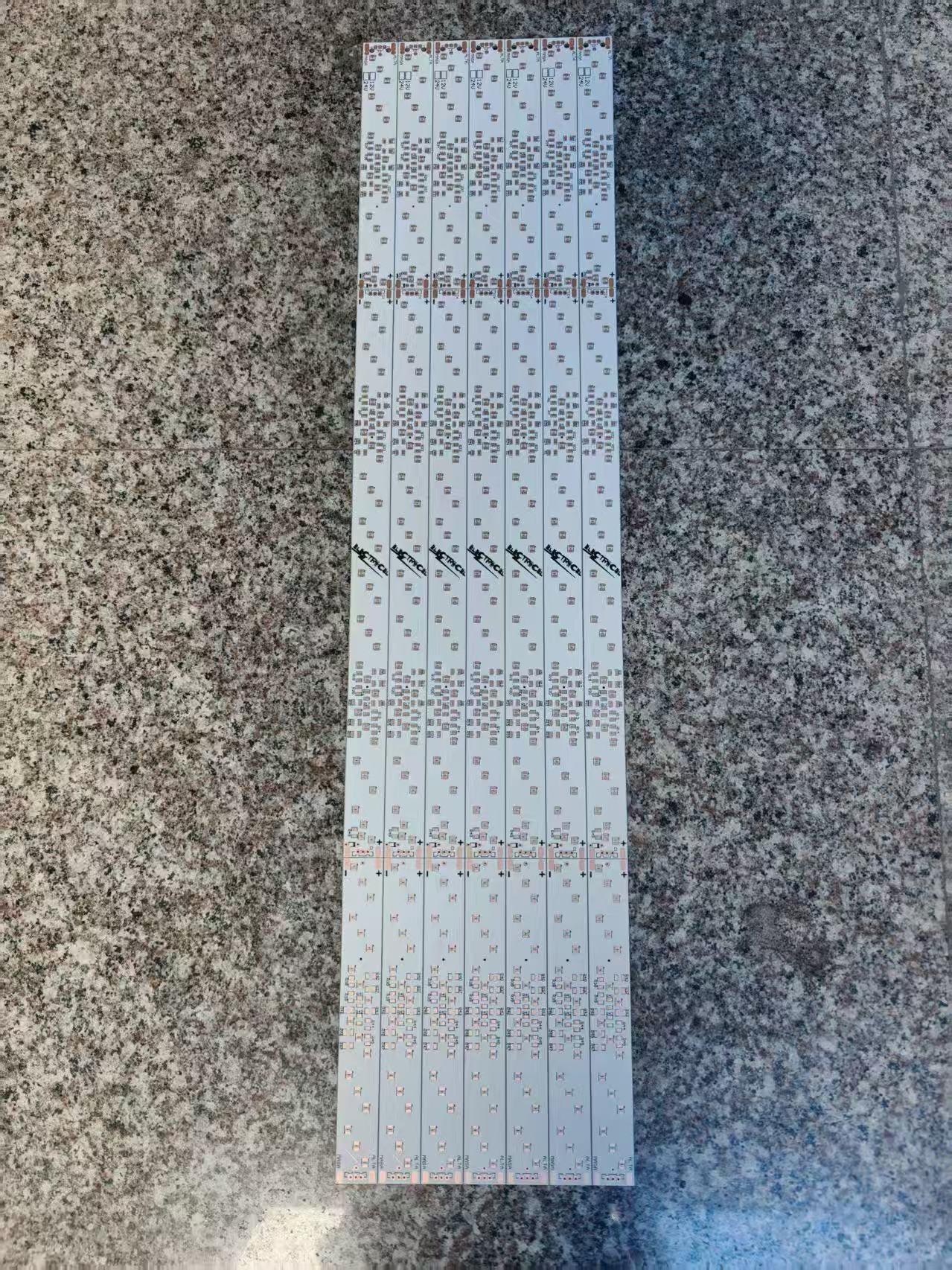

Thanks to the V Cut feature, the LED PCB BOARD can be easily separated into individual boards, making it convenient for mass production and assembly. This feature enhances efficiency and streamlines the manufacturing process, saving time and costs.
Common Product Application Occasions and Scenarios for the LED PCB BOARD include LED display boards for various purposes such as indoor advertising screens, outdoor billboards, and electronic signage. The high-quality construction of the board ensures stable performance for LED modules with different power ratings, such as 20W, 30W, and 15W.
Product Customization Services for LED PCB BOARD:
Brand Name: phoenix
Place of Origin: china
Pcba Service: SMD SMT DIP Component Assembly
Raw Material: FR4
Hole Tolerance: PTH: ±0.075, NTPH: ±0.05
Surface Finishes: OSP, HASL, HASL Lf, Immersion Gold, Etc.
Copper Thickness: 1oz-3oz
Keywords: 1.2MM/1.6MM, LED printed circuit board, LED display board
Product: LED PCB BOARD
Description: High-quality LED PCB board for efficient lighting solutions.
Packaging: Each LED PCB board is carefully packed in anti-static bags to prevent damage during transit.
Shipping: We offer fast and reliable shipping services to ensure that your LED PCB boards reach you safely and on time.
