| Place of Origin: | china |
|---|---|
| Brand Name: | phoenix |
| Copper Thickness: | 1oz-3oz | Profiling Punching: | Routing, V-CUT, Beveling |
|---|---|---|---|
| Service: | One-stop Service | Raw Material: | FR4 |
| Surface Finishes: | OSP, HASL, HASL Lf, Immersion Gold, Etc. | Copper Foil: | 35UM |
| Pcb Size: | Can Be Customized | Operating Temperature: | -30℃ - 70℃ |

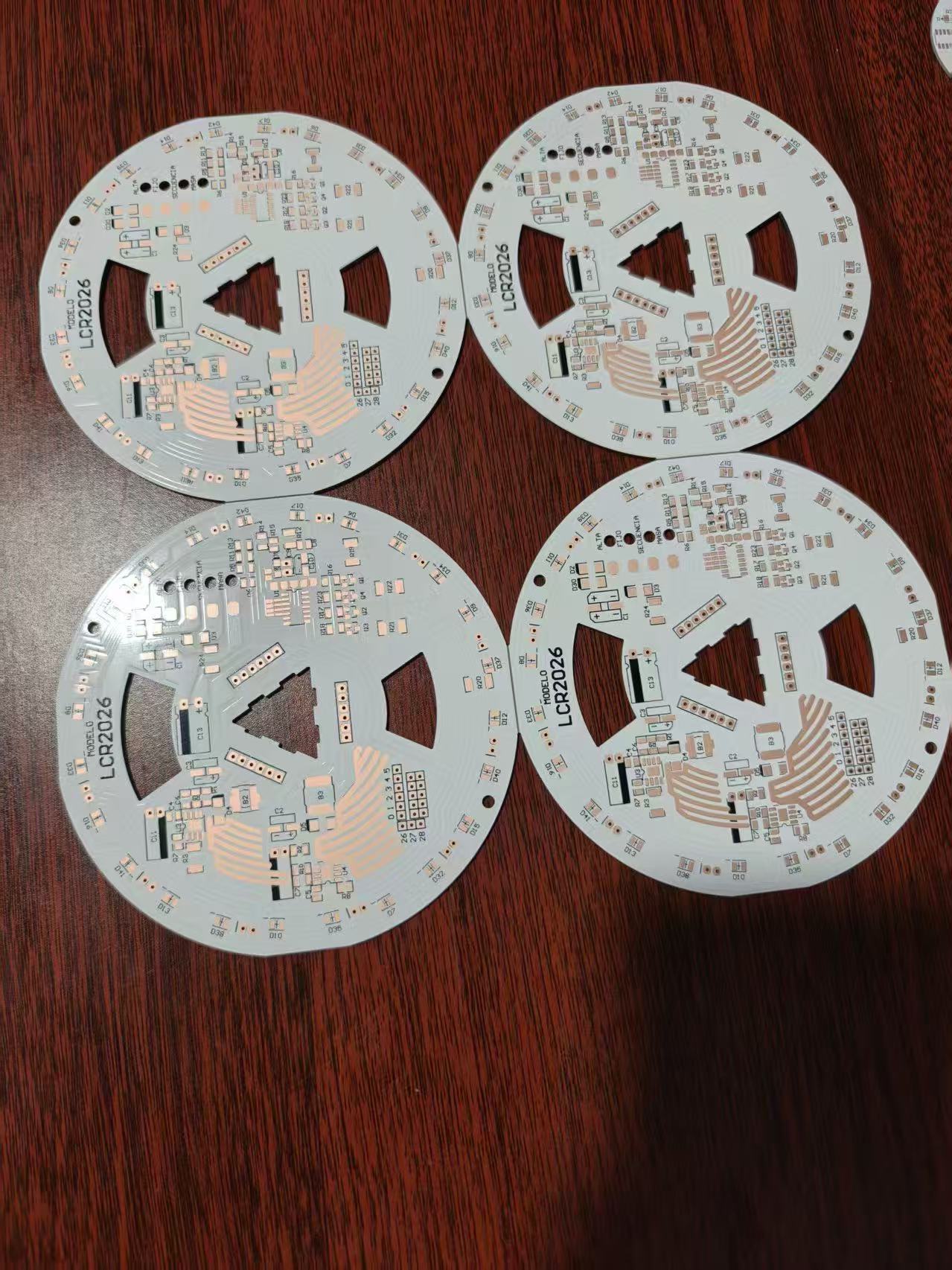

The LED PCB BOARD is a high-quality product designed for use in LED display boards, LED circuit boards, and LED light boards. This PCB board is manufactured with top-notch PCBA services, including SMD, SMT, and DIP component assembly, ensuring precise and efficient performance.
When it comes to surface finishes, the LED PCB BOARD offers a variety of options to choose from. Whether you prefer OSP, HASL, HASL Lf, Immersion Gold, or other finishes, this product provides flexibility to meet your specific requirements.
The copper thickness of the LED PCB BOARD ranges from 1oz to 3oz, which contributes to its durability and reliability. With this range of copper thickness options, you can select the most suitable one based on your project needs.
One of the standout features of the LED PCB BOARD is its one-stop service. This comprehensive service ensures that all your PCB manufacturing needs are met efficiently and effectively. From assembly to finishing, this product offers a seamless process for your convenience.
Additionally, if you are interested in evaluating the LED PCB BOARD before making a bulk purchase, samples are available. This allows you to test the product and ensure it meets your expectations before proceeding with larger orders.
| Thickness | 1.2mm-1.6mm |
| Operating Temperature | -30℃ - 70℃ |
| Copper Thickness | 1oz-3oz |
| Raw Material | FR4 |
| Max. Panel Size | 600mm X 1200mm |
| Surface Finishes | OSP, HASL, HASL Lf, Immersion Gold, Etc. |
| Profiling Punching | Routing, V-CUT, Beveling |
| Copper Foil | 35UM |
| V Cut | Yes |
| Service | One-stop Service |
LED PCB boards from the phoenix brand, manufactured in China, are versatile products suitable for a wide range of applications and scenarios. With a thickness ranging from 1.2mm to 1.6mm, these LED printed circuit boards offer reliability and durability in various settings.
The hole tolerance of the boards is precise, with PTH holes having a tolerance of ±0.075 and NTPH holes having a tolerance of ±0.05. This ensures accurate and consistent performance in different electronic devices.
Phoenix LED PCB boards come with different surface finishes such as OSP, HASL, HASL Lf, Immersion Gold, among others. This variety allows for customization based on specific requirements and preferences of the application.
Profiling punching options including routing, V-CUT, and beveling provide flexibility in design and assembly, making these LED PCB boards suitable for a wide range of product development needs.
Whether used in lighting systems, automotive electronics, industrial controls, or consumer electronics, the phoenix LED PCB boards offer high performance and reliability. Samples are available for testing and evaluation, ensuring that the product meets the requirements of the specific application.
Product Customization Services for the LED PCB BOARD:
Brand Name: phoenix
Place of Origin: china
Service: One-stop Service
Pcb Size: Can Be Customized
Hole Tolerance: PTH: ±0.075, NTPH: ±0.05
V Cut: Yes
Operating Temperature: -30℃ - 70℃
Product Name: LED PCB BOARD
Description: High-quality LED printed circuit board for various lighting applications.
Packaging: Each LED PCB BOARD is carefully packaged in anti-static bags to prevent any damage during transportation.
Shipping: We ship our products using reliable courier services to ensure safe and timely delivery to our customers.
