| Place of Origin: | china |
|---|---|
| Brand Name: | phoenix |
| Hole Tolerance: | PTH: ±0.075, NTPH: ±0.05 | Copper Thickness: | 1oz-3oz |
|---|---|---|---|
| Profiling Punching: | Routing, V-CUT, Beveling | Pcb Size: | Can Be Customized |
| Operating Temperature: | -30℃ - 70℃ | Pcba Service: | SMD SMT DIP Component Assembly |
| Raw Material: | FR4 | Thickness: | 1.2mm-1.6mm |

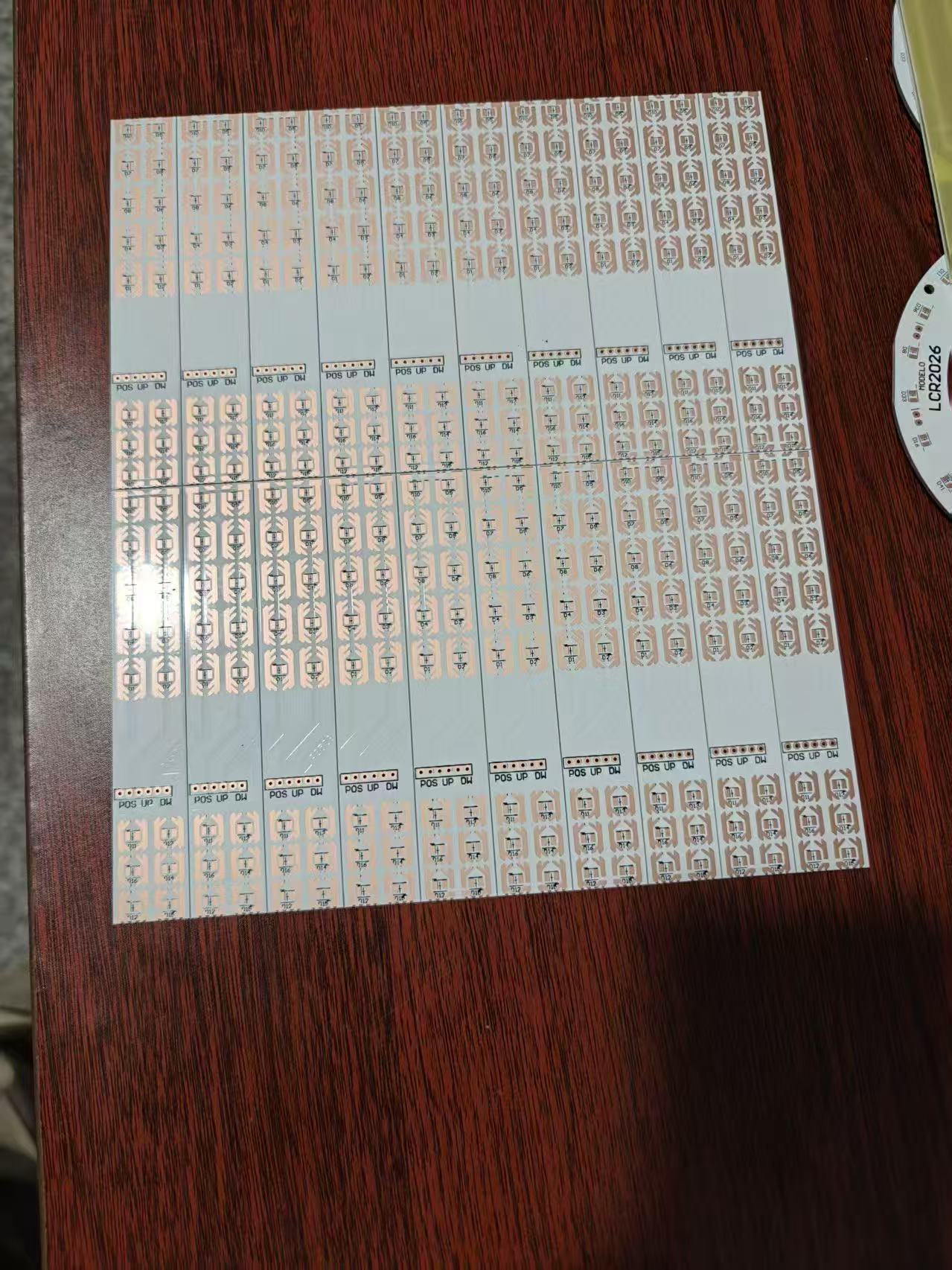

The LED PCB BOARD is a versatile product designed for various LED lighting applications. With a copper thickness ranging from 1oz to 3oz, this PCB board ensures efficient heat dissipation and reliable electrical performance. Whether you need a single or double-sided board, the LED PCB BOARD can be customized to meet your specific requirements.
Our PCBA service offers SMD, SMT, and DIP component assembly, providing a one-stop solution for your LED light board manufacturing needs. The high level of precision and attention to detail in our assembly process guarantees optimal performance and durability for your LED lighting products.
When it comes to accuracy, the LED PCB BOARD excels with hole tolerances of PTH: ±0.075 and NTPH: ±0.05. These tight tolerances ensure proper alignment and secure mounting of components, contributing to the overall reliability and longevity of your LED light board.
For your convenience, samples of the LED PCB BOARD are available, allowing you to evaluate the quality and performance of the product before making a larger order. This enables you to make informed decisions and ensures that the LED PCB BOARD meets your specific requirements and standards.
With a thickness ranging from 1.2mm to 1.6mm, the LED PCB BOARD strikes the perfect balance between durability and flexibility. Whether you are designing a 20W, 30W, or 15W LED light board, this PCB provides a sturdy and reliable foundation for your lighting project.
| Operating Temperature | -30℃ - 70℃ |
| Profiling Punching | Routing, V-CUT, Beveling |
| Hole Tolerance | PTH: ±0.075, NTPH: ±0.05 |
| Copper Foil | 35UM |
| Surface Finishes | OSP, HASL, HASL Lf, Immersion Gold, Etc. |
| Raw Material | FR4 |
| V Cut | Yes |
| Service | One-stop Service |
| Copper Thickness | 1oz-3oz |
| Max. Panel Size | 600mm X 1200mm |
LED PCB Boards manufactured by the phoenix brand in China are versatile products that can be customized to suit a wide range of applications. These PCB boards come in various sizes, with the flexibility to meet specific requirements. The surface finishes available include OSP, HASL, HASL Lf, Immersion Gold, and more, ensuring compatibility with different environments.
With copper thickness options ranging from 1oz to 3oz, these LED PCB Boards are suitable for different power requirements, such as 20W, 30W, or 15W applications. Whether you need a single or double-sided board, phoenix LED circuit boards offer reliable performance and durability.
The thickness of these boards can vary from 1.2mm to 1.6mm, providing stability and strength for various electronic components. The profiling punching options available, including Routing, V-CUT, and Beveling, allow for precise customization to meet specific design needs.
LED PCB Boards from phoenix are ideal for a wide range of application occasions and scenarios. They can be used in lighting fixtures, automotive lighting, display screens, signage, consumer electronics, and more. Whether it's for residential, commercial, or industrial use, these PCB boards offer efficient and consistent performance.
These boards are designed to meet the demands of modern LED technology, providing a reliable platform for powering and controlling LED components. The flexibility in customization, along with the high-quality materials and finishes, make phoenix LED PCB Boards a preferred choice for manufacturers looking to create innovative and energy-efficient lighting solutions.
Product Customization Services for the LED PCB BOARD:
- Brand Name: phoenix
- Place of Origin: China
- Copper Foil: 35UM
- Surface Finishes: OSP, HASL, HASL Lf, Immersion Gold, etc.
- Copper Thickness: 1oz-3oz
- Samples: Yes
- V Cut: Yes
Customize your LED display board with phoenix for quality results.
Product Name: LED PCB BOARD
Description: High-quality LED PCB board for various lighting applications.
Features: - Energy-efficient design - Long lifespan - Bright illumination
Package Includes: - LED PCB BOARD - Protective packaging
Shipping Information: - Shipping Method: Standard Shipping - Estimated Delivery Time: 5-7 business days - Shipping Cost: Calculated at checkout
