Bright 3V 2835 Red Led Chip For Warning Lights

Basic Information
Place of Origin: SUZHOU
Brand Name: PHOENIX
Certification: LM80 CE ROHS
Model Number: 2835
Minimum Order Quantity: 4000PCS
Price: Negotiation
Packaging Details: 4000PCS /ROLL
Delivery Time: 7-10 DAYS
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: 800KK PER MONTH
Name: SMD LED 2835 RED GREEN YELLOW Application: Warning Lights
Wld(nm): 620-625nm Nput Voltage(V): 3V
Power: 150ma Luminous Flux(lm): 60-65 Lm
Warranty(Year): 2 Years Operating Temperature(℃): -40-85
Viewing Angle(°):: 120 Working Time (hours): 20000

3V 2835 Red Chip Bright Led For Warning Lights


Application Introduction:


2835 smd leds offers various voltage options 3V 6V 9V 18V 36V and comes in power 0.2W 0.5W and 1W. ... 2835 Red SMD LED Chip 60mA 150mA.The 2V 60mA Red SMD 2835 LED from LED components supplier and manufacfturer Moonlight is a collection of compact devices, 2.8mm*3.5mm, that allows for design freedom and provides a superior overall system solution when a project requires high flux output and good efficacy


 Quick details:


Input Voltage(V): 3V
Warranty(Year): 2-Year
Type: Smd Led Chip 2835
Lighting solutions service: Lighting and circuitry design
Luminous Efficacy(lm/w): 60-65lm
Lifespan (hours): 50000
Working Time (hours): 20000
Chip Material: INGAN
Emitting Color: Red
Power: 0.5W
Viewing Angle(°): 120 Degree
Color Rendering Index(Ra): 80
Color Temperature: 620-625NM
Place of Origin: Suzhou ,jiangsu
Application: Warning lights
Package Type: Suface Mount Package
Forward Current: 150MA
Size: 2.8*3.5*0.65mm
Packing: 4000 Pcs/Roll

Product specification:

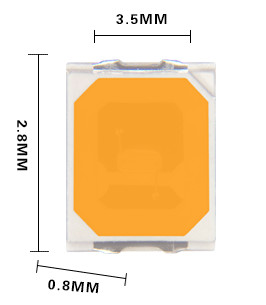

Package Structure:

Bright 3V 2835 Red Led Chip For Warning Lights 0


Absolute Maximum Ratings:


Item Symbol Absolute Maximum Ratings Unit
Forward Current IF 150 mA
Reverse Voltage Vr 5 V
Pulsed Forward Current IFP* 180 mA
Power dissipation PD 0.5 W
Operating Temperature TOP -40~85
Storage Temperature TST -40~85
Electrostatic Discharge ESD 2000(HBM) V
Junction Temperature Tj 120
LED Thermal resistance Rth s-j 33 ℃/W


Typical Electro-Optical characteristics curves:

Bright 3V 2835 Red Led Chip For Warning Lights 1





Product features:


Adopt good quality chip and frame ,antistatic good stability Ultra low attenuation

High brightness ,low attenuation high color rendering

Minimum 70,80,90 95 CRI options

Strong welding and good stability undead light

Product series and company logo on the front

CE ROHS LM80 Certification


Production Process:


Bright 3V 2835 Red Led Chip For Warning Lights 2
