| Name: | SMD LED 2835 White Color | Nput Voltage(V): | 18v |
|---|---|---|---|
| Power: | 30MA | Luminous Flux(lm): | 75-85lm |
| Application: | Bulb Lamp | CCT: | 3000k 4000k 6500k |
| Warranty(Year): | 2 Years | Working Time (hours): | 20000 |
| Operating Temperature(℃): | -40-85 | Viewing Angle(°):: | 120 |
| High Light: | 18v 2835 LED Chip,Bulb 2835 LED Chip,18v smd 2835 chip |
||
Application Introduction:
When ordinary energy-saving lamps work, the temperature will be about 60-80 ℃, and the temperature of ordinary incandescent lamps is higher (80-120 ℃), which will burn if they are accidentally touched.
The bulb lamp uses LED as the light source and professional heat dissipation structure. The working temperature is very low (40-60 ℃), and it won't burn even if it is grasped on the hand.
The material of energy-saving lamp and ordinary bulb products is glass. It is easy to break when colliding with hard objects, resulting in permanent damage and can not be used, and it will be cut by glass accidentally.
The bulb uses a professionally designed shell, and the lamp shell is made of PC material / acrylic die-casting. The LED of the light source part is also made of special anti-seismic and fall resistant materials (the lens part uses the most advanced one-time forming soft lens technology), and its lampshade is made of acrylic material, which is not easy to cut even if it is broken.

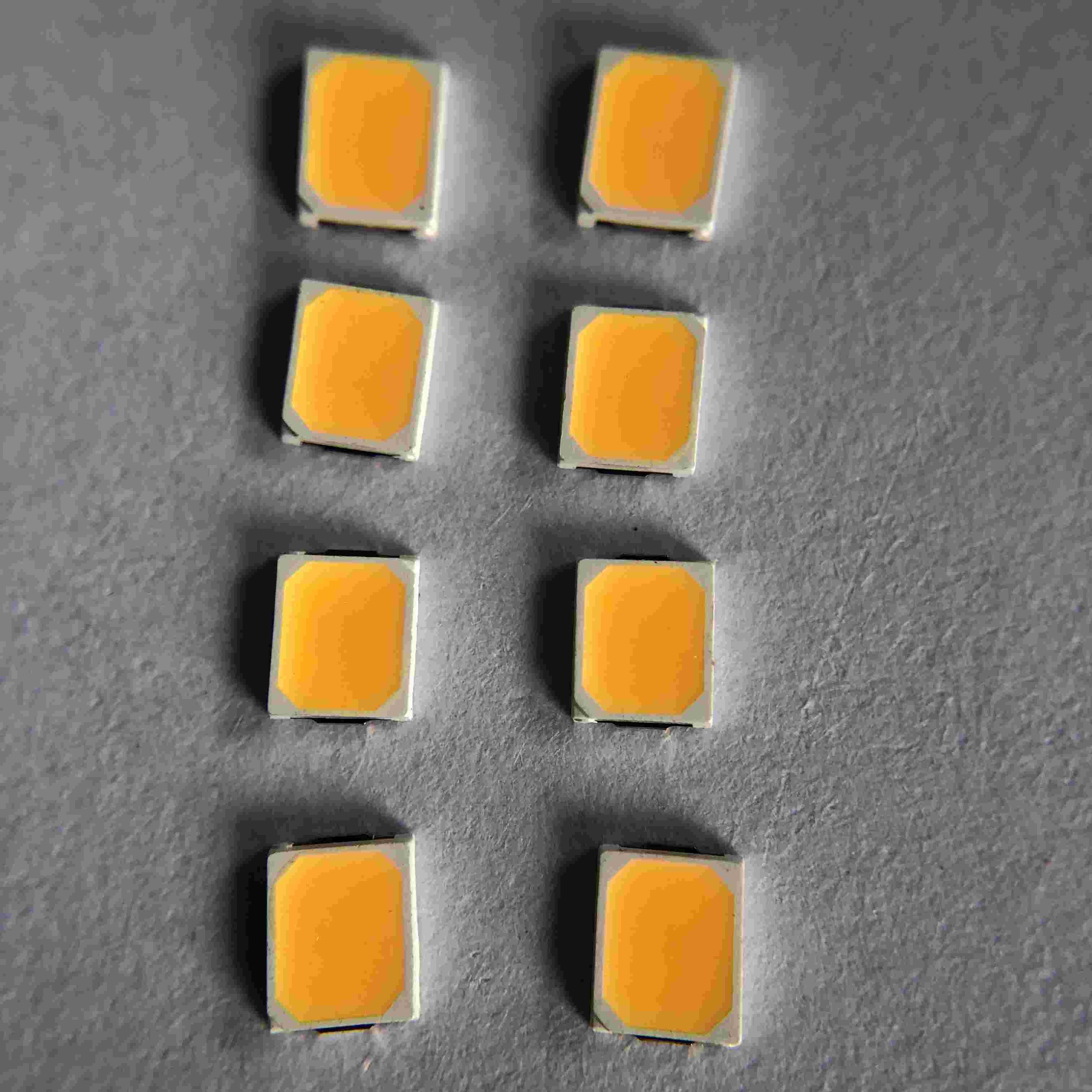

High brightness 18v 30ma SMD LED 2835 for bulb lamp
Quick details:
| Input Voltage(V): | 18V |
| Warranty(Year): | 2-Year |
| Type: | Smd Led Chip 2835 |
| Lighting solutions service: | Lighting and circuitry design |
| Luminous Efficacy(lm/w): | 160lm/w |
| Lifespan (hours): | 50000 |
| Working Time (hours): | 20000 |
| Chip Material: | INGAN |
| Emitting Color: | 3000K 4000K 6500K |
| Power: | 0.5W |
| Viewing Angle(°): | 120 Degree |
| Color Rendering Index(Ra): | 80 |
| Packing bag: | 220*240nm |
| Place of Origin: | Suzhou ,jiangsu |
| Application: | LED STRIP |
| Package Type: | Suface Mount Package |
| Forward Current: | 30MA |
| Size: | 2.8*3.5*0.65mm |
| Packing: | 4000 Pcs/Roll |
Product specification:
Package Structure
Absolute Maximum Ratings
| Power dissipation | PD | 0.5 | W |
| Continuous forward current | IFmax | 30 | mA |
| Peak forward current (1/10 duty cycle 10ms pulse width) | IFP | 40 | mA |
| Item | Symbol | Maximum | Unit |
| Reverse voltage | VR | 5 | V |
| Electrostatic Discharge (HBM) | ESD | 2000 | V |
| Operating temperature range | Topr | -40 to +85 | ℃ |
| Storage temperature range | Tstg | -40 to +85 | ℃ |
| Led yunction temperature | Tj | 120 | ℃ |
Optical/Electrical Characterization:
| CCT | STEPS | x | y | a | b | θ |
| ERP F6500 | 1 | 0.313 | 0.337 | 0.00223 | 0.00095 | 58.383 |
| ERP F5000 | 1 | 0.346 | 0.359 | 0.00274 | 0.00118 | 59.617 |
| ERP F4000 | 1 | 0.38 | 0.38 | 0.00313 | 0.00134 | 54 |
| ERP F3000 | 1 | 0.44 | 0.403 | 0.00278 | 0.00136 | 53.167 |
| ERP P2700 | 1 | 0.463 | 0.42 | 0.00258 | 0.00137 | 57.283 |
| CCT | STEPS | CX | CY | a | b | theta |
| 2700K | 1 | 0.4578 | 0.4101 | 0.0027 | 0.0014 | 53.7 |
| 3000K | 1 | 0.4338 | 0.403 | 0.00278 | 0.00136 | 53.22 |
| 3500K | 1 | 0.4073 | 0.3917 | 0.00309 | 0.00138 | 54 |
| 4000K | 1 | 0.3818 | 0.3797 | 0.00313 | 0.00134 | 53.72 |
| 5000K | 1 | 0.3447 | 0.3553 | 0.00274 | 0.00118 | 59.62 |
| 5700K | 1 | 0.3287 | 0.3417 | 0.00249 | 0.00107 | 59.09 |
| 6500K | 1 | 0.3123 | 0.3282 | 0.00223 | 0.00095 | 58.57 |
Typical Electro-Optical characteristics curves:
LED Reliability Test List
| No. | Item | Test Conditions |
Test hr/cycle/time |
Sample Q’ty |
Ac∕Re | |
| 1 | Solder Heat | TEMP:260℃±5℃；5±1 sec | 2 times | 30 pcs | 0∕1 | |
| 2 | Solder ability Test ※ | TEMP:235℃±5℃；3±1 sec | 1 time | 5 pcs | 0∕1 | |
| 3 | Temperature Cycle |
H:+100℃ 30min. ∫5min. L:-40℃ 30min. |
100 cycles | 20 pcs | 0∕1 | |
| 4 | Thermal Shock |
H:+100℃ 5min. ∫ L:-40℃ 5min. |
50 cycles | 20 pcs | 0∕1 | |
| 5 | High Temperature Storage | TEMP:100℃ | 1000 hrs | 20 pcs | 0∕1 | |
| 6 | Low Temperature Storage | TEMP:-40℃ | 1000 hrs | 20 pcs | 0∕1 | |
| 7 | DC Operating Life | IF＝IFmax | 1000 hrs | 20 pcs | 0∕1 | |
| 8 |
High Temperature High Humidity |
85℃∕85％R.H. | 1000 hrs | 20 pcs | 0∕1 | |
| 9 | Shocking test |
100～2000Hz ；98.1m/s2 X,Y,Z direction |
2 hrs | 20 pcs | 0∕1 | |
| 10 | Dropping test | Put on pallet ；height:75cm | 3 times | 20 pcs | 0∕1 | |
| Judgment Criteria | ||||||
| Forward Voltage VF | VF Max-Increase < 1.1x | |||||
| Reverse Current IR | IR Max-Increase < IRmax | |||||
| Luminous Intensity IV | IV Decay < 40% | |||||
|
※Solder ability test criteria:coverage is not less than 95% Note:Measurement shall be taken after the tested samples have been returned to normal ambient conditions (generally after two hours) |
||||||
Packaging:
Cautions:
The encapsulated material of the LEDs is silicone. Therefore the LEDs have a soft surface on the
Top of package. The pressure to the top surface will be influence to the reliability of the LEDs. Precautions Should be taken to avoid the strong pressure on the encapsulated part. So when use the picking up nozzle,The pressure on the silicone resin should be proper.
Soldering iron :
When hand soldering, the temperature of the iron must less than 300℃ for 3 seconds
The hand solder should be done only one times
SMT Reflow Soldering Instructions SMT :
Reflow soldering should not be done more than two times
When soldering , do not put stress on the LEDs during heating
The recommended reflow soldering profile as following
Handling Precautions :
Handle the component along the side surface by using forceps or appropriate tools
Do not directly touch or handle the silicone lens surface. It may damage the internal circuitry
Do not stack together assembled PCBs containing LEDs. Impact may scratch the silicone lens or damage the internal circuitry
Product features:
Adopt good quality chip and frame ,antistatic good stability Ultra low attenuation
High brightness ,low attenuation high color rendering
Minimum 70,80,90 95 CRI options
Strong welding and good stability undead light
Product series and company logo on the front
CE ROHS LM80 Certification
