High Voltage SMD 2835 LED Chip 54V Bulb Lighting

Basic Information
Place of Origin: SUZHOU
Brand Name: PHOENIX
Certification: LM80 CE ROHS
Model Number: 2835
Minimum Order Quantity: 4000PCS
Price: Negotiation
Packaging Details: 4000PCS /ROLL
Delivery Time: 7-10 DAYS
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: 800KK PER MONTH
Name: SMD LED 2835 Luminous Flux(lm): 150-160lm
Nput Voltage(V): 54V Power: 20MA
CCT: 3000k 4000k 6500k Application: Bulb Lamp
Warranty(Year): 2 Years Working Time (hours): 20000
Operating Temperature(℃): -40-85 Viewing Angle(°):: 120
High Light:

54V 2835 LED Chip


High Voltage 2835 LED Chip


54V chip led smd 2835

Application Introduction:


The environmental protection benefit is better. There is no ultraviolet and infrared rays in the spectrum, neither heat nor radiation, small glare, recyclable waste, no pollution, no mercury, cold light source, safe to touch, which is a typical green lighting source.


2835 54V 20MA High voltage SMD LED CHIP for bulb lamp


Quick details:


Input Voltage(V): 54V
Warranty(Year): 2-Year
Type: Smd Led Chip 2835
Lighting solutions service: Lighting and circuitry design
Luminous Efficacy(lm/w): 160lm/w
Lifespan (hours): 50000
Working Time (hours): 20000
Chip Material: INGAN
Emitting Color: 3000K 4000K 6500K
Power: 1W
Viewing Angle(°): 120 Degree
Color Rendering Index(Ra): 80
Packing bag: 220*240nm
Place of Origin: Suzhou ,jiangsu
Application: LED STRIP
Package Type: Suface Mount Package
Forward Current: 20MA
Size: 2.8*3.5*0.65mm
Packing: 4000 Pcs/Roll

Product specification:


Package Structure

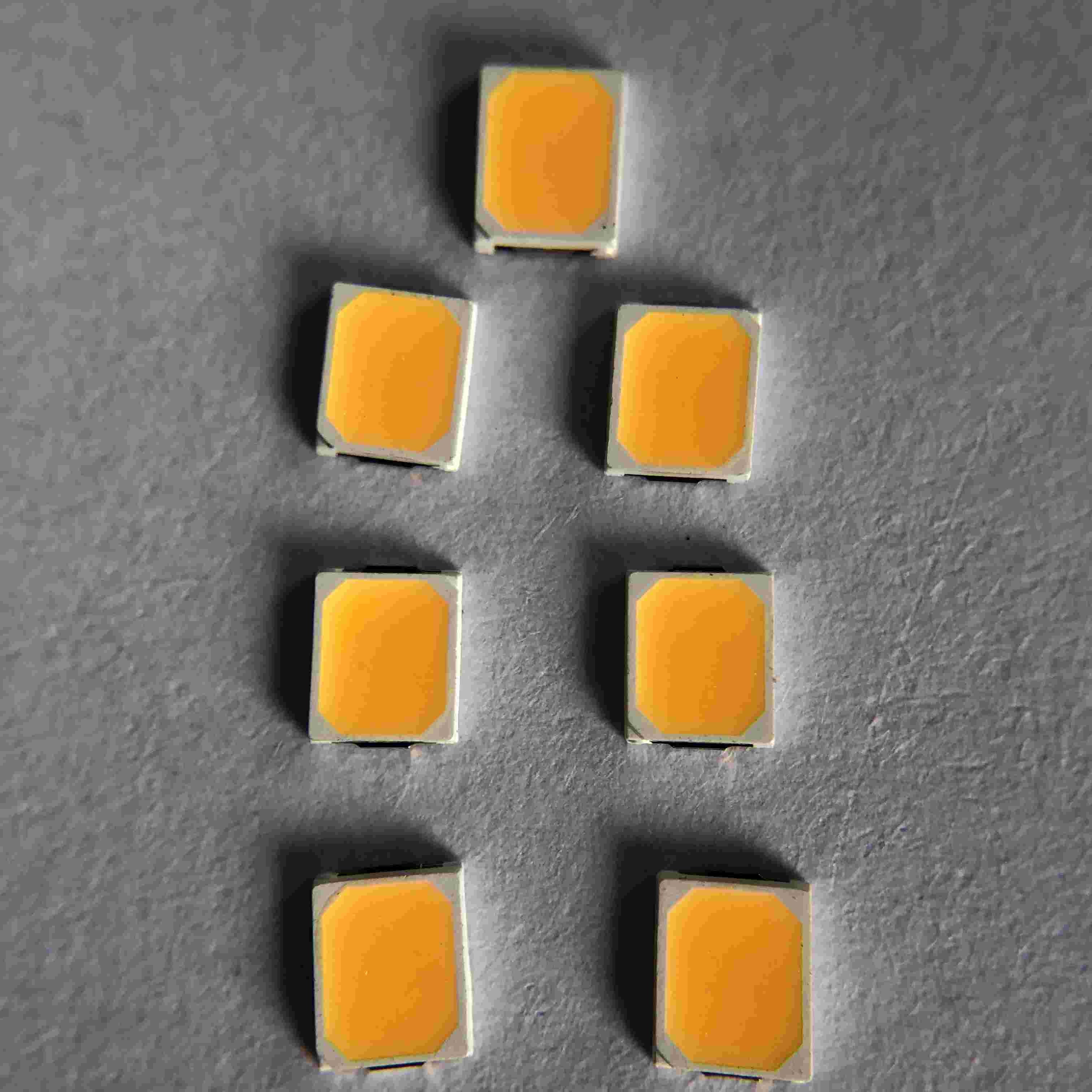

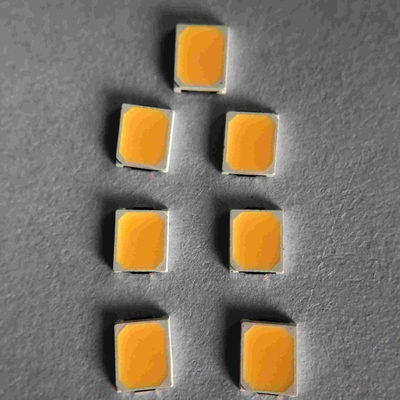

High Voltage SMD 2835 LED Chip 54V Bulb Lighting 0

Absolute Maximum Ratings


Item Symbol Maximum Unit
Power dissipation PD 1 W
Continuous forward current IFmax 20 mA
Peak forward current (1/10 duty cycle 10ms pulse width) IFP 30 mA
Reverse voltage VR 5 V
Electrostatic Discharge (HBM) ESD 2000 V
Operating temperature range Topr -40 to +85
Storage temperature range Tstg -40 to +85
Led yunction temperature Tj 125


Optical/Electrical Characterization:


Item Symbol Condition Min Typ Max Unit
Forward voltage VF IF=60mA 50 52 54 V



- X=0.32 -
- Y=0.34 -
CCT   IF=60mA 2700 4000 6550 K
Viewing Angle 2θ1/2 IF=60mA - 120 - Deg
Luminous Intensity IV IF=60mA 120   160 LM
CRI RA IF=60mA 80     RA
Reverse Current Ir Vr=5V 0   1 uA
Thermal resistance Rth(j-s) IF=60mA   28   ℃/W


Typical Electro-Optical characteristics curves:

High Voltage SMD 2835 LED Chip 54V Bulb Lighting 1

LED Reliability Test List


No. Item Test Conditions





1 Solder Heat TEMP:260℃±5℃;5±1 sec 2 times 30 pcs 0∕1
2 Solder ability Test ※ TEMP:235℃±5℃;3±1 sec 1 time 5 pcs 0∕1
3 Temperature Cycle

H:+100℃ 30min.


L:-40℃ 30min.

100 cycles 20 pcs 0∕1
4 Thermal Shock

H:+100℃ 5min.

L:-40℃ 5min.

50 cycles 20 pcs 0∕1
5 High Temperature Storage TEMP:100℃ 1000 hrs 20 pcs 0∕1
6 Low Temperature Storage TEMP:-40℃ 1000 hrs 20 pcs 0∕1
7 DC Operating Life IF=IFmax 1000 hrs 20 pcs 0∕1

High Temperature

High Humidity

85℃∕85%R.H. 1000 hrs 20 pcs 0∕1
9 Shocking test

100~2000Hz ;98.1m/s2

X,Y,Z direction

2 hrs 20 pcs 0∕1
10 Dropping test Put on pallet ;height:75cm 3 times 20 pcs 0∕1
Judgment Criteria
Forward Voltage VF VF Max-Increase < 1.1x
Reverse Current IR IR Max-Increase < IRmax
Luminous Intensity IV IV Decay < 40%

※Solder ability test criteria:coverage is not less than 95%

Note:Measurement shall be taken after the tested samples have been returned to normal ambient conditions (generally after two hours)



High Voltage SMD 2835 LED Chip 54V Bulb Lighting 2


The encapsulated material of the LEDs is silicone. Therefore the LEDs have a soft surface on the

Top of package. The pressure to the top surface will be influence to the reliability of the LEDs. Precautions Should be taken to avoid the strong pressure on the encapsulated part. So when use the picking up nozzle,The pressure on the silicone resin should be proper.

Soldering iron :
 When hand soldering, the temperature of the iron must less than 300℃ for 3 seconds
 The hand solder should be done only one times

SMT Reflow Soldering Instructions SMT :
Reflow soldering should not be done more than two times
When soldering , do not put stress on the LEDs during heating
The recommended reflow soldering profile as following

High Voltage SMD 2835 LED Chip 54V Bulb Lighting 3

Handling Precautions :
Handle the component along the side surface by using forceps or appropriate tools
Do not directly touch or handle the silicone lens surface. It may damage the internal circuitry
Do not stack together assembled PCBs containing LEDs. Impact may scratch the silicone lens or damage the internal circuitry

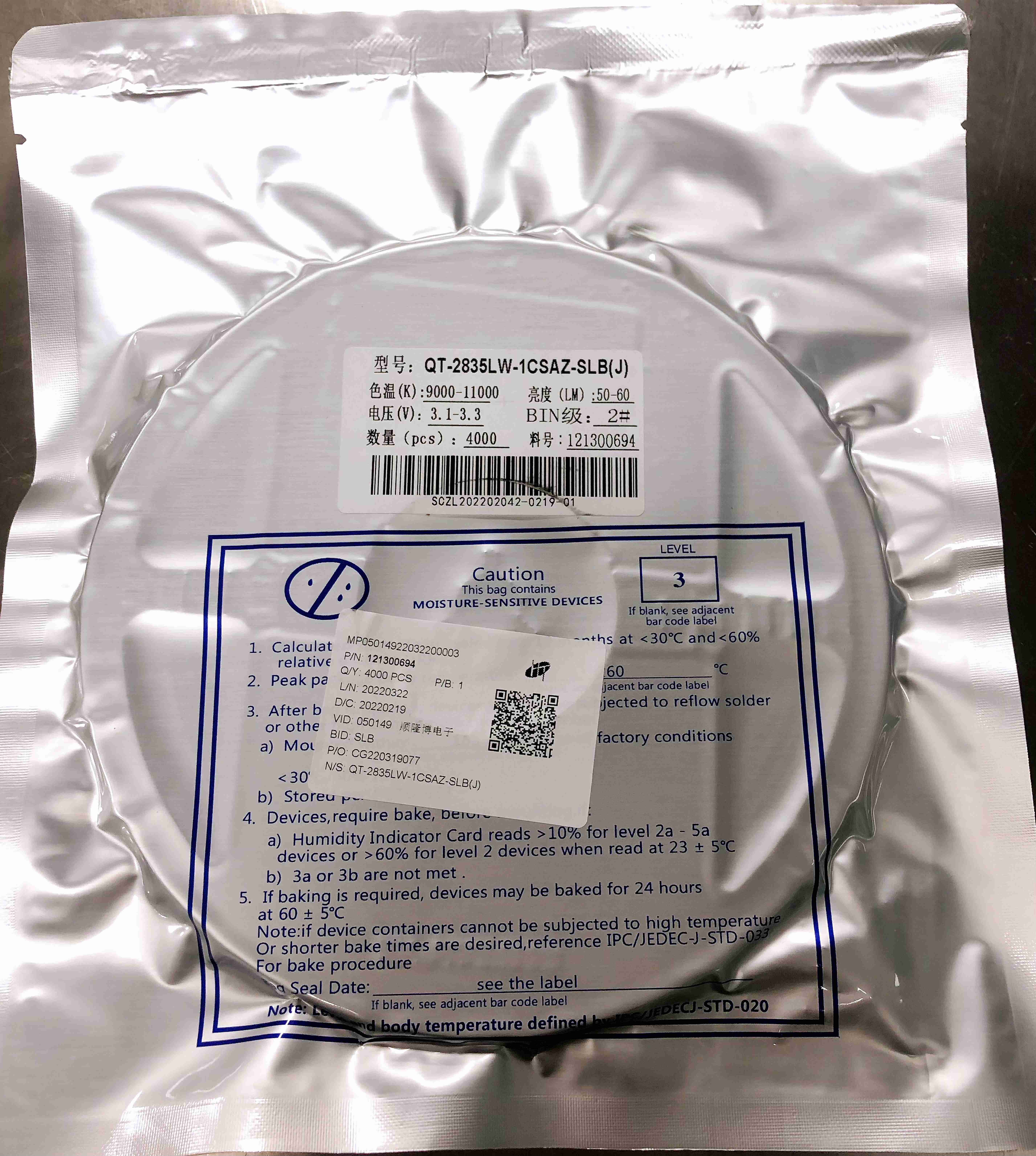

High Voltage SMD 2835 LED Chip 54V Bulb Lighting 4High Voltage SMD 2835 LED Chip 54V Bulb Lighting 5High Voltage SMD 2835 LED Chip 54V Bulb Lighting 6High Voltage SMD 2835 LED Chip 54V Bulb Lighting 7


Product features:


Adopt good quality chip and frame ,antistatic good stability Ultra low attenuation

High brightness ,low attenuation high color rendering

Minimum 70,80,90 95 CRI options

Strong welding and good stability undead light

Product series and company logo on the front

CE ROHS LM80 Certification
