| Place of Origin: | SUZHOU |
|---|---|
| Brand Name: | PHOENIX |
| Certification: | LM80 CE ROHS |
| Model Number: | 2835 |
| Minimum Order Quantity: | 4000PCS |
| Price: | Negotiation |
| Packaging Details: | 4000PCS /ROLL |
| Delivery Time: | 7-10 DAYS |
| Payment Terms: | Western Union, MoneyGram, T/T |
| Supply Ability: | 800KK PER MONTH |
| Name: | SMD LED 2835 | Nput Voltage(V): | 3V |
|---|---|---|---|
| Application: | Home Decoration | Power: | 60MA |
| Luminous Flux(lm): | 26-28lm | CCT: | 2700K 3000K 4000K 6500k |
| Warranty(Year): | 2 Years | Working Time (hours): | 20000 |
| Operating Temperature(℃): | -40-85 | Viewing Angle(°):: | 120 |
Application Introduction:

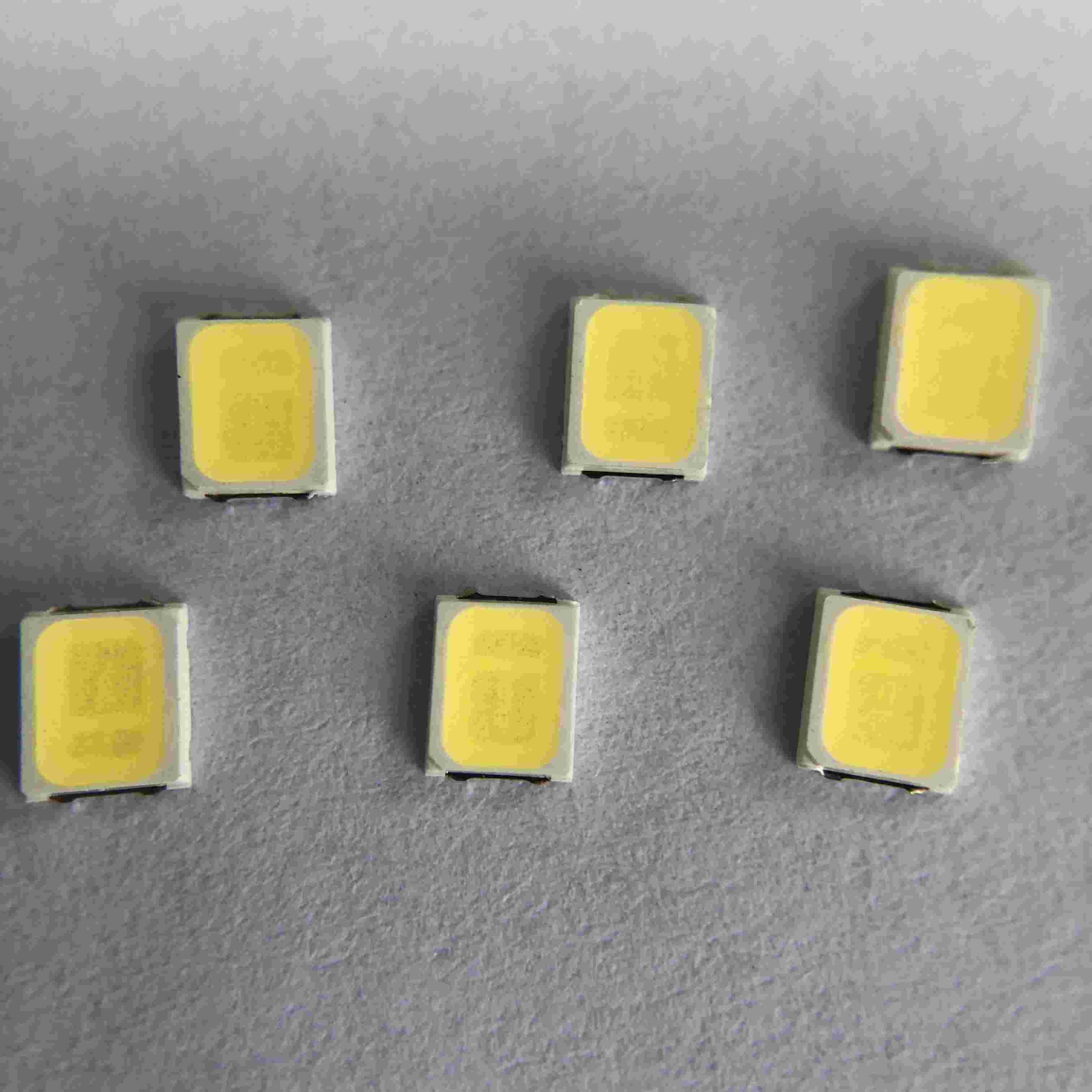

High Lumen 3V 6500K PCT SMD 2835 Smd Chip Full Spectrum 60MA
Quick details:
| Input Voltage(V): | 3V |
| Warranty(Year): | 2-Year |
| Type: | Smd Led Chip 2835 |
| Lighting solutions service: | Lighting and circuitry design |
| Luminous Efficacy(lm/w): | 150lm/w |
| Lifespan (hours): | 50000 |
| Working Time (hours): | 20000 |
| Chip Material: | INGAN |
| Emitting Color: | 2700-6500K |
| Power: | 0.2W |
| Viewing Angle(°): | 120 Degree |
| Color Rendering Index(Ra): | 80 |
| Packing bag: | 220*240nm |
| Place of Origin: | Suzhou ,jiangsu |
| Application: | LED STRIP |
| Package Type: | Suface Mount Package |
| Forward Current: | 60MA |
| Size: | 2.8*3.5*0.65mm |
| Packing: | 4000 Pcs/Roll |
Product specification:
Package Structure
Absolute Maximum Ratings
| Item | Symbol | Absolute Maximum Ratings | Unit |
| Forward Current | IF | 60 | mA |
| Reverse Voltage | Vr | 5 | V |
| Pulsed Forward Current | IFP* | 80 | mA |
| Power dissipation | PD | 0.2 | W |
| Operating Temperature | TOP | -40~85 | ℃ |
| Storage Temperature | TST | -40~85 | ℃ |
| Electrostatic Discharge | ESD | 2000(HBM) | V |
| Junction Temperature | Tj | 120 | ℃ |
| LED Thermal resistance | Rth s-j | 30 | ℃/W |
Typical Electro-Optical characteristics curves:
Product features:
Adopt good quality chip and frame ,antistatic good stability Ultra low attenuation
High brightness ,low attenuation high color rendering
Minimum 70,80,90 95 CRI options
Strong welding and good stability undead light
Product series and company logo on the front
CE ROHS LM80 Certification
Production Process:
