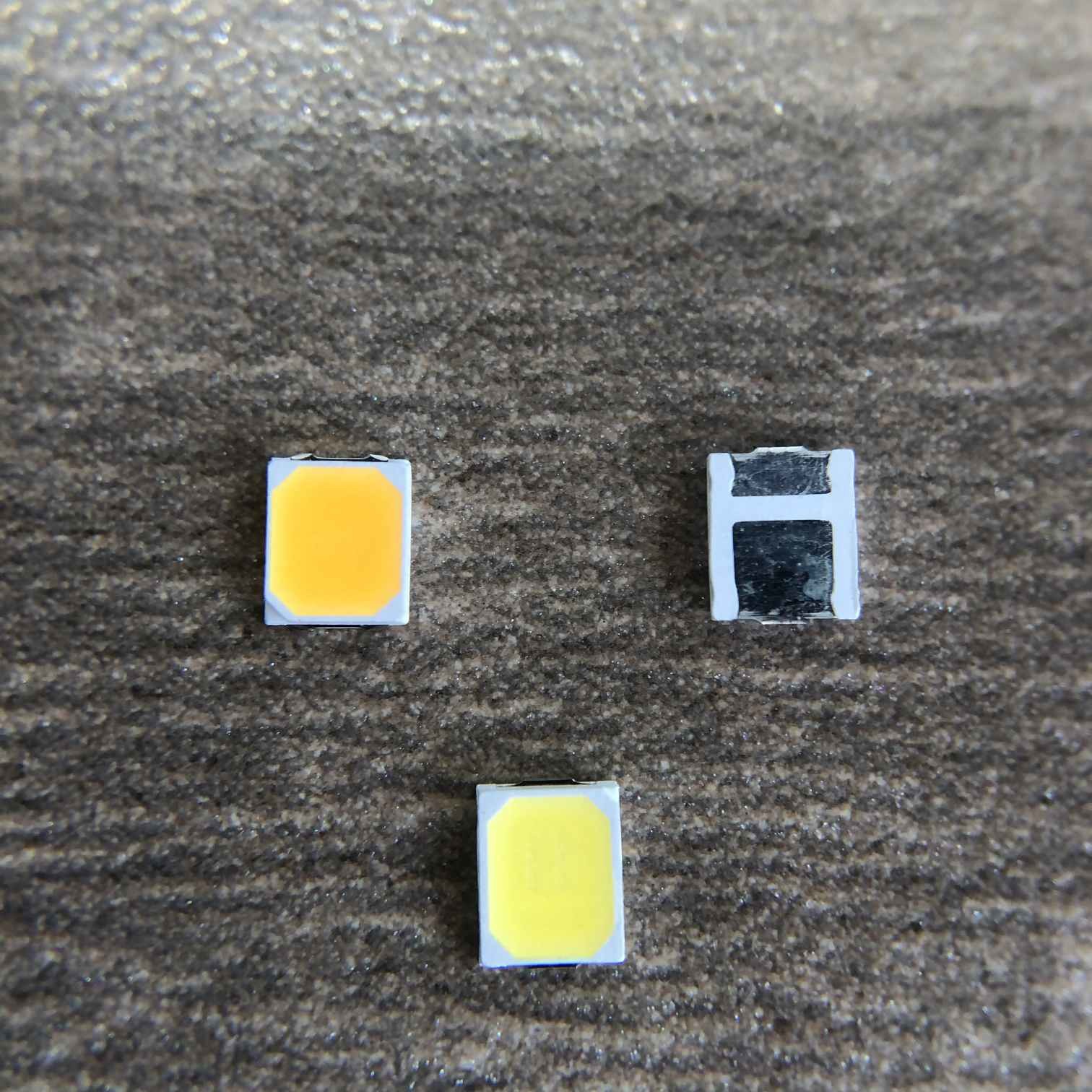

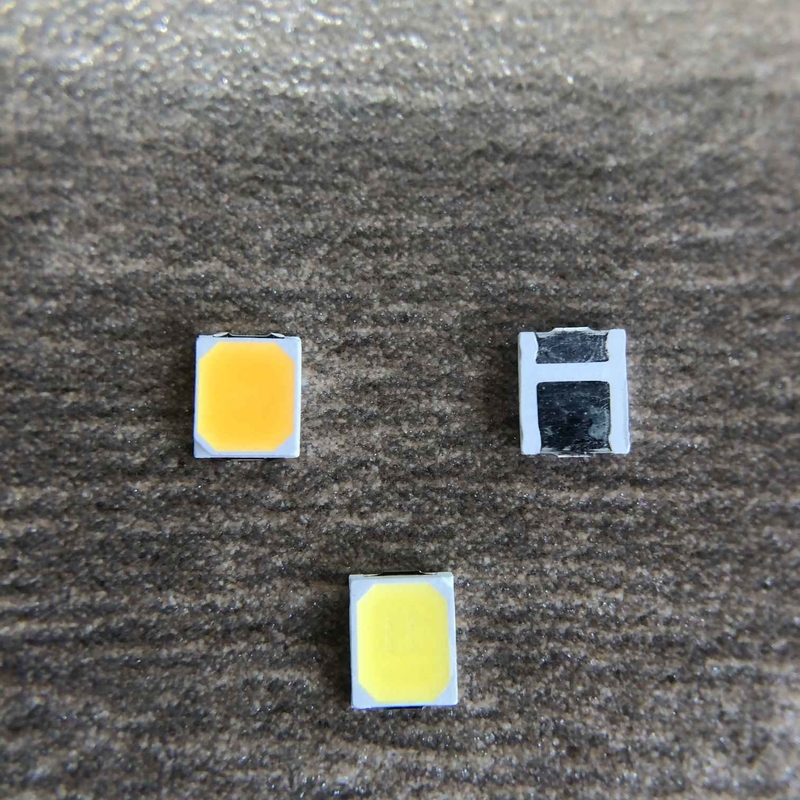

White PPT Smd 3030 Led Chip 30ma 180lm 36v For Wall Washing Lamp

Basic Information
Place of Origin: SUZHOU
Brand Name: PHOENIX
Certification: CE LM80 ROHS
Model Number: 3030
Minimum Order Quantity: 4000PCS
Price: Negotiation
Packaging Details: 4000PCS /ROLL
Delivery Time: 7-10 DAYS
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: 800KK PER MONTH
Name: SMD LED 3030 White Color Nput Voltage(V): 36V
Luminous Flux(lm): 170-180lm Power: 1W
Cct: 2700K 3000K 6000K Warranty(Year): 2 Years
Working Time (hours): 20000 Color Rendering Index(Ra): 80
Operating Temperature(℃): -40-85 Application: Wall Washing Lamp
High Light:

180lm Smd 3030 Led Chip


36v Led Chip 3030


Wall Washing Lamp Led Chip 3030

PPT 36v Smd 3030 Led Chip 30ma 180lm For Wall Washing Lamp


High Power 36v 30ma 180lm PPT Smd 3030 Led Chip For Wall Washing Lamp


All LED chips can last more than 100,000 hours, but that has no bearing on the lifespan of the luminaire itself. While advertising 360,000+ hours may be attractive to customers now, down the road, they will suffer a loss because the company's actual warranty won't match such a wild claim.





Quick details:

Input Voltage(V): 36V
Warranty(Year): 2-Year
Type: Smd Led Chip 3030
Lighting solutions service: Lighting and circuitry design
Luminous Efficacy(lm/w): 180lm
Lifespan (hours): 50000
Working Time (hours): 20000
Chip Material: INGAN
Emitting Color: Warm White/Natural White/COOL WHITE
Power: 1W
Viewing Angle(°): 120 Degree
Color Rendering Index(Ra): 80
Color Temperature: 2700-6500K
Place of Origin: Suzhou ,jiangsu
Application: Gym light
Package Type: Suface Mount Package
Forward Current: 30MA
Size: 3.0*3.0*0.7mm
Packing: 4000 Pcs/Roll


Product specification:


Package Structure:


White PPT Smd 3030 Led Chip 30ma 180lm 36v For Wall Washing Lamp 0

Absolute Maximum Ratings:


Item Symbol Absolute Maximum Ratings Unit
Forward Current IF 30 mA
Reverse Voltage Vr 5 V
Pulsed Forward Current IFP* 30 mA
Power dissipation PD 0.5 W
Operating Temperature TOP -40~85
Storage Temperature TST -40~85
Electrostatic Discharge ESD 2000(HBM) V
Junction Temperature Tj 120
LED Thermal resistance Rth s-j 33 ℃/W


LED Reliability Test List:


Test Item Test Conditions Standard Qty(Pcs) Ac/Re
Life Test 25℃,1000Hrs@30mA / 20 0/1
High Temperature 85℃,1000Hrs@30mA / 20 0/1
Low Temperature -40℃,1000Hrs@30mA / 20 0/1
High Humidity Heat



/ 20 0/1
Low Temperature Storage -40℃,1000Hrs


200 202

20 0/1
High Temperature Storage 100℃,1000Hrs


200 201

20 0/1
Temperature Cycle (-40'C 30mins --25'C(5mins)--100'C(30mins) ,Temp changing rate:3+/-0.6'C/min)


100 105

20 0/1
Thermal Shock -40'C(15mins) --100'C(15mins),changing time <5mins ,300C MIL-STD-202G 20 0/1

Pulse Life Test


Tp=1ms,DC=0.1,D=Tp/T @ 3×30mA / 20 0/1
ESD Test(HBM) 2000V,200V/Step, Forward & Reverse Test both 3times



20 0/1
Soldering Resistance


Pre-treatment 30℃,70%RH


300 302

20 0/1
Reflow IV Decay


Pre-treatment 30℃,70%RH,168Hrs

/ 20 0/1
Judgment Criteria
Forward Voltage VF VF Max-Increase < 1.1x
Reverse Current IR IR Max-Increase < IRmax
Luminous Intensity IV IV Decay < 40%

※Solder ability test criteria:coverage is not less than 95%

Note:Measurement shall be taken after the tested samples have been returned to normal ambient conditions (generally after two hours)



Product process :

White PPT Smd 3030 Led Chip 30ma 180lm 36v For Wall Washing Lamp 1
