Brightest 2835 Smd Led Chip 9v 0.5w 80 - 85lm For Neon Strip

Basic Information
Place of Origin: SUZHOU
Brand Name: PHOENIX
Certification: LM80 CE ROHS
Model Number: 2835
Minimum Order Quantity: 4000PCS
Price: Negotiation
Packaging Details: 4000PCS /ROLL
Delivery Time: 7-10 DAYS
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: 800KK PER MONTH
Name: SMD LED 2835 CCT: 6500k 3000k 4000k
Luminous Flux(lm): 75-85lm Application: Bulb Lamp
Power: 60MA Nput Voltage(V): 9V
Warranty(Year): 2 Years Working Time (hours): 20000
Operating Temperature(℃): -40-85 Viewing Angle(°):: 120
Color Rendering Index(Ra):: 70 80 90 95 Material:: Copper Base+gold Wire
High Light:

Neon Strip 2835 Smd Led Chip

,

2835 Smd Led Chip 0.5w

,

Neon Strip 2835 Chip

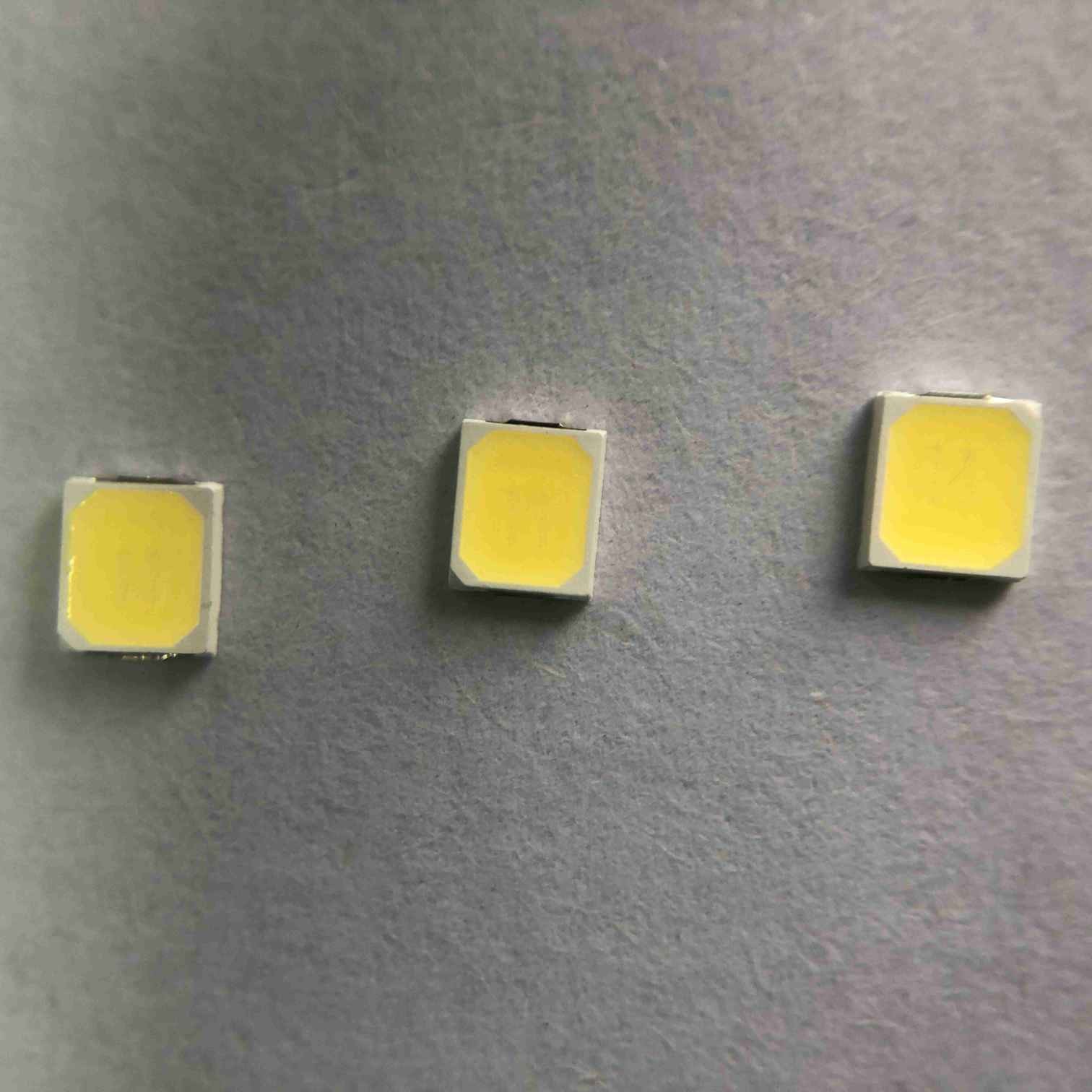

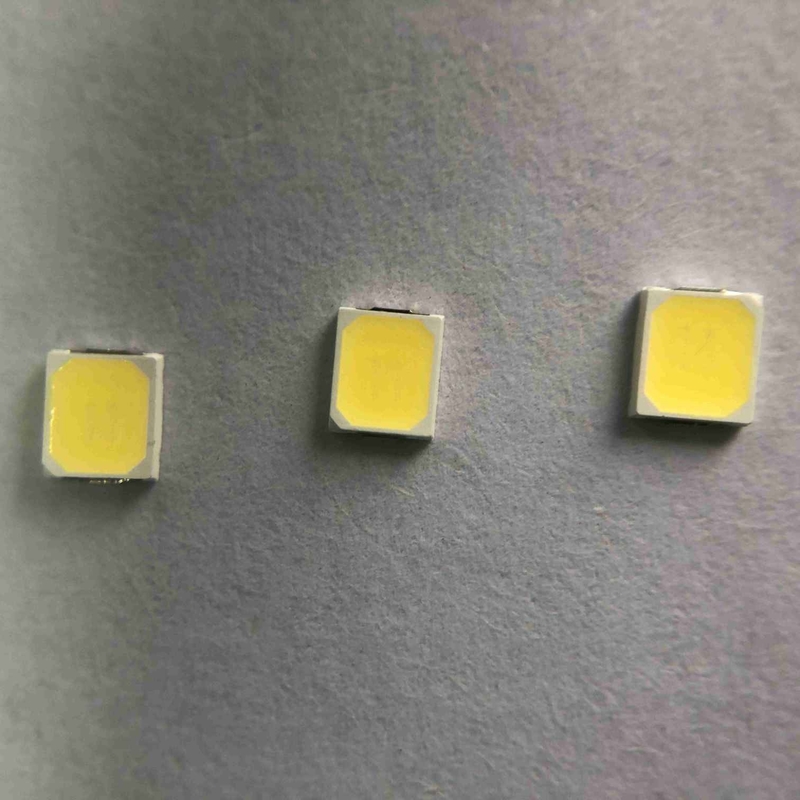

Brightest SMD LED Chip 2835 9v 0.5w 80-85lm For Neon Strip



Application Introduction:



Silicone light belt can be one of neon light belts. Extruded silicone neon light belt is one of the preferred light belts for outdoor lighting.

Silicone neon light belt is made of high-quality environmental protection silicone material, which realizes high-grade waterproof, has salt, acid and alkali resistance, gas corrosion resistance, UV resistance and other characteristics.



High brightness 2835 9v 0.5w smd led chip 80-85lm for bulb lamp​



Quick details:



Input Voltage(V): 9V
Warranty(Year): 2-Year
Type: Smd Led Chip 2835
Lighting solutions service: Lighting and circuitry design
Luminous Efficacy(lm/w): 160lm/w
Lifespan (hours): 50000
Working Time (hours): 20000
Chip Material: INGAN
Emitting Color: 2700k 3000k 6500k
Power: 0.5w
Viewing Angle(°): 120 Degree
Color Rendering Index(Ra): 80
Packing bag: 220*240nm
Place of Origin: Suzhou ,jiangsu
Application: LED STRIP
Package Type: Suface Mount Package
Forward Current: 60MA
Size: 2.8*3.5*0.65mm
Packing: 4000 Pcs/Roll


Product specification:



Package Structure

Brightest 2835 Smd Led Chip 9v 0.5w 80 - 85lm For Neon Strip 0

Absolute Maximum Ratings





Item



Symbol



Absolute Maximum Ratings



Unit



Forward Current IF 60 mA
Reverse Voltage Vr 15 V
Pulsed Forward Current  IFP* 90 mA
Power dissipation  PD 1 W
Operating Temperature TOP -40~115
Storage Temperature TST -40~85
Electrostatic Discharge ESD 2000(HBM) V
Junction Temperature Tj 125
LED Thermal resistance Rth s-j 20 ℃/W





Typical Electro-Optical characteristics curves:

Brightest 2835 Smd Led Chip 9v 0.5w 80 - 85lm For Neon Strip 1

LED Reliability Test List



Test Item Test Conditions Standard Qty(Pcs) Ac/Re
     Life Test 25℃,1000Hrs@20mA / 22 0/1

High Temperature



85℃,1000Hrs@20mA / 22 0/1

Low Temperature



-40℃,1000Hrs@20mA / 22 0/1

High Humidity Heat



85℃,85%RH,

1000Hrs@20mA

/ 22 0/1
Low Temperature Storage -40℃,1000Hrs

JEITA ED-4701

200 202

22 0/1
High Temperature Storage 100℃,1000Hrs

JEITA ED-4701

200 201

22 0/1

Temperature Cycle



(-40'C 30mins --25'C(5mins)--100'C(30mins) ,Temp changing rate:3+/-0.6'C/min)

JEITA ED-4701

100 105

22 0/1
Thermal Shock -40'C(15mins) --100'C(15mins),changing time <5mins ,300C MIL-STD-202G 22 0/1

Pulse Life Test



Tp=1ms,DC=0.1,D=Tp/T @ 3×20mA / 22 0/1

ESD Test(HBM)



2000V,200V/Step, Forward & Reverse Test both 3times

AEC

(Q101-001)

22 0/1

Soldering Resistance



260±5℃,10S,3times

Pre-treatment 30℃,70%RH

JEITA ED-4701

300 302

22 0/1

Reflow IV Decay



260±5℃,10S,1time

Pre-treatment 30℃,70%RH,168Hrs

/ 22 0/1
Judgment Criteria
Forward Voltage VF VF Max-Increase < 1.1x
Reverse Current IR IR Max-Increase < IRmax
Luminous Intensity IV IV Decay < 40%

※Solder ability test criteria:coverage is not less than 95%

Note:Measurement shall be taken after the tested samples have been returned to normal ambient conditions (generally after two hours)





Cautions:

The encapsulated material of the LEDs is silicone. Therefore the LEDs have a soft surface on the

Top of package. The pressure to the top surface will be influence to the reliability of the LEDs. Precautions Should be taken to avoid the strong pressure on the encapsulated part. So when use the picking up nozzle,The pressure on the silicone resin should be proper.


Soldering iron :
 When hand soldering, the temperature of the iron must less than 300℃ for 3 seconds
 The hand solder should be done only one times

SMT Reflow Soldering Instructions SMT :
Reflow soldering should not be done more than two times
When soldering , do not put stress on the LEDs during heating
The recommended reflow soldering profile as following

Brightest 2835 Smd Led Chip 9v 0.5w 80 - 85lm For Neon Strip 2



Product features:



Adopt good quality chip and frame ,antistatic good stability Ultra low attenuation

High brightness ,low attenuation high color rendering

Minimum 70,80,90 95 CRI options

Strong welding and good stability undead light

Product series and company logo on the front

CE ROHS LM80 Certification



Production Process:



Brightest 2835 Smd Led Chip 9v 0.5w 80 - 85lm For Neon Strip 3
