| Place of Origin: | SUZHOU |
|---|---|
| Brand Name: | PHOENIX |
| Certification: | LM80 CE ROHS |
| Model Number: | 2835 |
| Minimum Order Quantity: | 4000PCS |
| Price: | Negotiation |
| Packaging Details: | 4000PCS /ROLL |
| Delivery Time: | 7-10 DAYS |
| Payment Terms: | Western Union, MoneyGram, T/T |
| Supply Ability: | 800KK PER MONTH |
| Name: | SMD LED 2835 | CCT: | 6500k 3000k 4000k |
|---|---|---|---|
| Luminous Flux(lm): | 75-85lm | Application: | Bulb Lamp |
| Power: | 60MA | Nput Voltage(V): | 9V |
| Warranty(Year): | 2 Years | Working Time (hours): | 20000 |
| Operating Temperature(℃): | -40-85 | Viewing Angle(°):: | 120 |
| Color Rendering Index(Ra):: | 70 80 90 95 | Material:: | Copper Base+gold Wire |
| High Light: | Chip Led Smd 2835 85lm,2835 Chip For Panel Light,2835 Chip 0.5w |
||

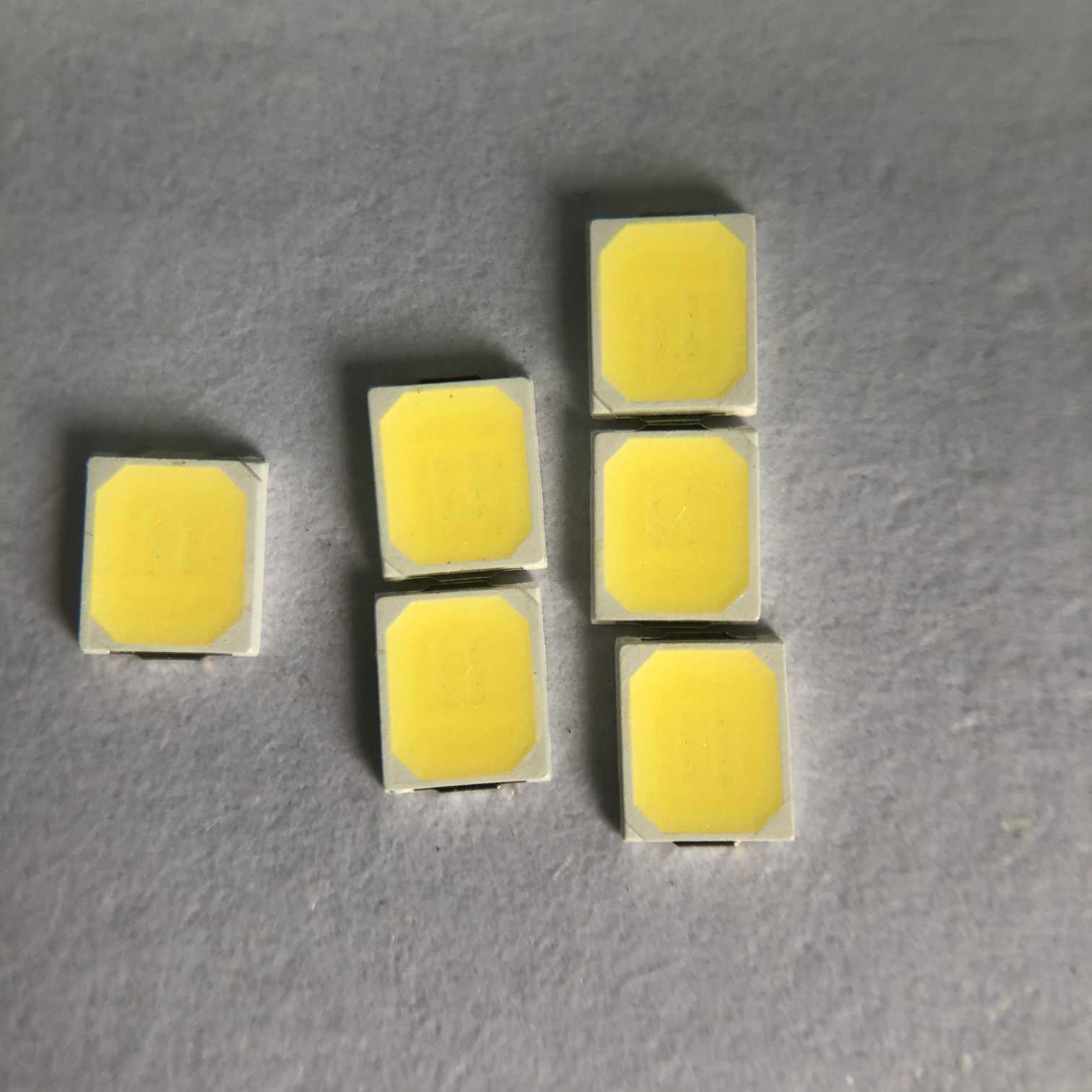

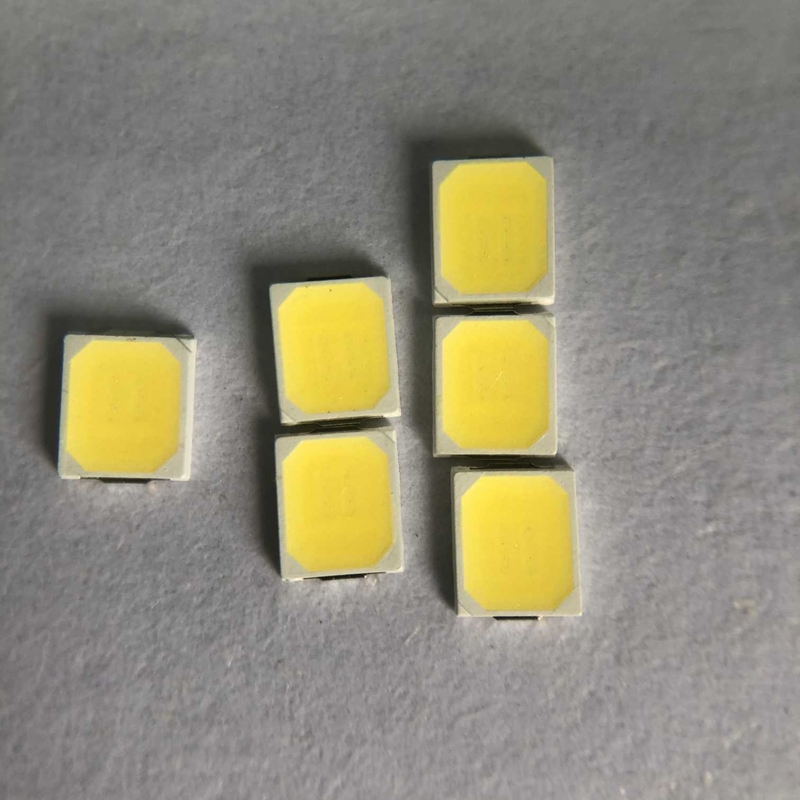

Brightest SMD LED Chip 2835 9v 0.5w 80-85lm For Panel Light
Application Introduction:
LED panel lamp is a high-end indoor lighting lamp. Its outer frame is made of aluminum alloy through anodic oxidation, and the light source is led. The design of the whole lamp is beautiful, simple, atmospheric and luxurious, which not only has a good lighting effect, but also gives people a beautiful feeling.
High brightness 2835 9v 0.5w smd led chip 80-85lm for bulb lamp
Quick details:
| Input Voltage(V): | 9V |
| Warranty(Year): | 2-Year |
| Type: | Smd Led Chip 2835 |
| Lighting solutions service: | Lighting and circuitry design |
| Luminous Efficacy(lm/w): | 160lm/w |
| Lifespan (hours): | 50000 |
| Working Time (hours): | 20000 |
| Chip Material: | INGAN |
| Emitting Color: | 2700k 3000k 6500k |
| Power: | 0.5w |
| Viewing Angle(°): | 120 Degree |
| Color Rendering Index(Ra): | 80 |
| Packing bag: | 220*240nm |
| Place of Origin: | Suzhou ,jiangsu |
| Application: | LED STRIP |
| Package Type: | Suface Mount Package |
| Forward Current: | 60MA |
| Size: | 2.8*3.5*0.65mm |
| Packing: | 4000 Pcs/Roll |
Product specification:
Package Structure
Absolute Maximum Ratings
|
Item
|
Symbol
|
Absolute Maximum Ratings
|
Unit
|
| Forward Current | IF | 60 | mA |
| Reverse Voltage | Vr | 15 | V |
| Pulsed Forward Current | IFP* | 90 | mA |
| Power dissipation | PD | 1 | W |
| Operating Temperature | TOP | -40~115 | ℃ |
| Storage Temperature | TST | -40~85 | ℃ |
| Electrostatic Discharge | ESD | 2000(HBM) | V |
| Junction Temperature | Tj | 125 | ℃ |
| LED Thermal resistance | Rth s-j | 20 | ℃/W |
Typical Electro-Optical characteristics curves:
LED Reliability Test List
| Test Item | Test Conditions | Standard | Qty(Pcs) | Ac/Re |
| Life Test | 25℃,1000Hrs@20mA | / | 22 | 0/1 |
|
High Temperature
|
85℃,1000Hrs@20mA | / | 22 | 0/1 |
|
Low Temperature
|
-40℃,1000Hrs@20mA | / | 22 | 0/1 |
|
High Humidity Heat
|
85℃,85%RH, 1000Hrs@20mA |
/ | 22 | 0/1 |
| Low Temperature Storage | -40℃,1000Hrs |
JEITA ED-4701 200 202 |
22 | 0/1 |
| High Temperature Storage | 100℃,1000Hrs |
JEITA ED-4701 200 201 |
22 | 0/1 |
|
Temperature Cycle
|
(-40'C 30mins --25'C(5mins)--100'C(30mins) ,Temp changing rate:3+/-0.6'C/min) |
JEITA ED-4701 100 105 |
22 | 0/1 |
| Thermal Shock | -40'C(15mins) --100'C(15mins),changing time <5mins ,300C | MIL-STD-202G | 22 | 0/1 |
|
Pulse Life Test
|
Tp=1ms,DC=0.1,D=Tp/T @ 3×20mA | / | 22 | 0/1 |
|
ESD Test(HBM)
|
2000V,200V/Step, Forward & Reverse Test both 3times |
AEC (Q101-001) |
22 | 0/1 |
|
Soldering Resistance
|
260±5℃,10S,3times Pre-treatment 30℃,70%RH |
JEITA ED-4701 300 302 |
22 | 0/1 |
|
Reflow IV Decay
|
260±5℃,10S,1time Pre-treatment 30℃,70%RH,168Hrs |
/ | 22 | 0/1 |
| Judgment Criteria | ||||
| Forward Voltage VF | VF Max-Increase < 1.1x | |||
| Reverse Current IR | IR Max-Increase < IRmax | |||
| Luminous Intensity IV | IV Decay < 40% | |||
|
Solder ability test criteria:coverage is not less than 95% Note:Measurement shall be taken after the tested samples have been returned to normal ambient conditions (generally after two hours) |
||||
Product features:
Adopt good quality chip and frame ,antistatic good stability Ultra low attenuation
High brightness ,low attenuation high color rendering
Minimum 70,80,90 95 CRI options
Strong welding and good stability undead light
Product series and company logo on the front
CE ROHS LM80 Certification
