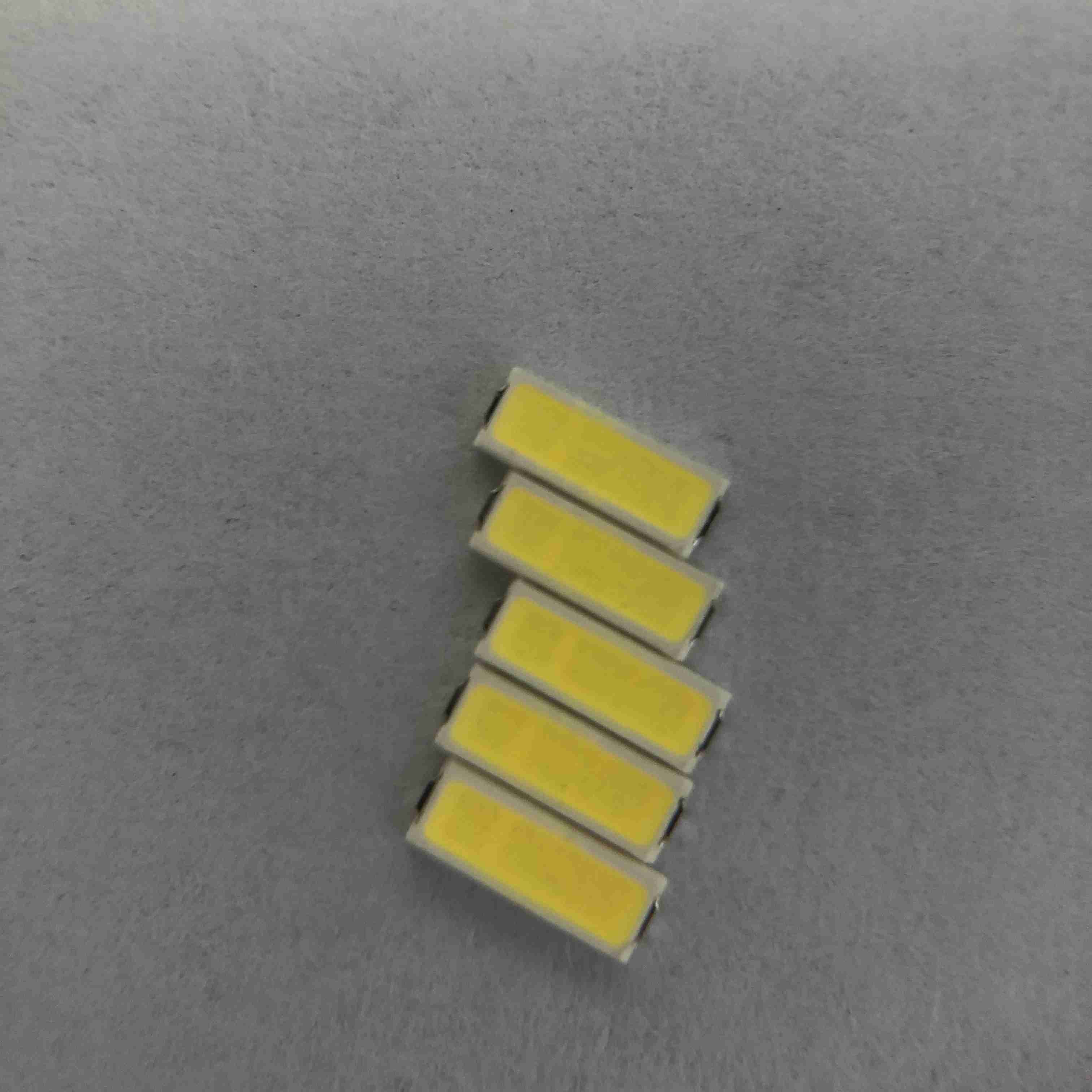

3000k 3V 60MA 3014 LED Chip 0.2W For Backlight Car Screen Light

Basic Information
Place of Origin: SUZHOU
Brand Name: PHOENIX
Certification: LM80 CE ROHS
Model Number: 3014
Minimum Order Quantity: 4000PCS
Price: Negotiation
Packaging Details: 4000PCS /ROLL
Delivery Time: 7-10 DAYS
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: 800KK PER MONTH
Name: SMD LED 3014 Application: Car Interior Decorative Lamp
Nput Voltage(V): 3V Luminous Flux(lm): 24-26lm
Power: 60MA CCT: 6000-6500K
Warranty(Year): 2 Years Working Time (hours): 20000
Operating Temperature(℃): -40-85 Viewing Angle(°):: 120
High Light:

3V 60MA 3014 LED Chip

,

3000k 3014 LED Chip

,

3000k LED Light Chip

3V 60MA 3014 LED Chip Light 3000k 0.2W For Backlight Car Screen Light

Application:

The automobile display is an important part of the automobile audio-visual system. Its function is equivalent to the color TV in the home theater. Automobile monitors often have other functions besides playing programs. For example, the scene behind the car can be displayed automatically when reversing after connecting the car camera, which is convenient for reversing; In addition, it may also have other additional functions, such as small speakers, small lights, etc. Due to the narrow internal space of the car, the environment in which the car is moving changes a lot. Therefore, the on-board display device may also have the functions of automatic backlight adjustment, anti glare, automatic angle adjustment, etc. to adapt to the particularity of the car.

3V 60MA 0.2W 3014 26-28LM white light PCT SMD LED CHIP For Car light



Quick details:



Input Voltage(V): 3V
Warranty(Year): 2-Year
Type: Smd Led Chip 3014
Lighting solutions service: Lighting and circuitry design
Luminous Efficacy(lm/w): 150lm/w
Lifespan (hours): 50000
Working Time (hours): 20000
Chip Material: INGAN
Emitting Color: 6000-6500K
Power: 0.2W
Viewing Angle(°): 120 Degree
Color Rendering Index(Ra): 70
Packing bag: 220*240nm
Place of Origin: Suzhou ,jiangsu
Application: car  backlight
Package Type: Suface Mount Package
Forward Current: 60MA
Size: 3.0*1.4*0.65mm
Packing: 4000 Pcs/Roll


Product specification:



Package Structure

3000k 3V 60MA 3014 LED Chip 0.2W For Backlight Car Screen Light 0





Absolute Maximum Ratings





Parameter Symbol Test condition Min Typ Max Unit
Forward Voltage VF IF=60mA 2.7  - 3.3 V
Luminous Flux ф IF=60mA 24  - 26 LM
Color Temperature CCT IF=60mA 2500 -  6500 K
Reverse current VR VR=7V 0 μA
Color Rending Index Ra IF=60mA 80 -
View Angle 2θ1/2 IF=60mA 120 deg



Typical Electro-Optical characteristics curves:



3000k 3V 60MA 3014 LED Chip 0.2W For Backlight Car Screen Light 1

LED Reliability Test List



Test Item Test Conditions Standard Qty (Pcs)
Life Test 25℃,1000Hrs@60mA / 20
High Temperature 85℃,1000Hrs@60mA / 20
Low Temperature -40℃,1000Hrs@60mA / 20
High Humidity Heat

85℃,85%RH,

1000Hrs@60mA

/ 20
Low Temperature Storage -40℃,1000Hrs

JEITA ED-4701

200 202

20
High Temperature Storage 100℃,1000Hrs

JEITA ED-4701

200 201

20
Temperature Cycle (-40'C 30mins --25'C(5mins)--100'C(30mins) ,Temp changing rate:3+/-0.6'C/min)

JEITA ED-4701

100 105

20
Thermal Shock -40'C(15mins) --100'C(15mins),changing time <5mins ,300C MIL-STD-202G 20
Pulse Life Test Tp=1ms,DC=0.1,D=Tp/T @ 3×60mA / 20
ESD Test(HBM) 2000V,200V/Step, Forward & Reverse Test both 3times

AEC

(Q101-001)

20
Soldering Resistance

260±5℃,10S,3times

Pre-treatment 30℃,70%RH

JEITA ED-4701

300 302

20
Reflow IV Decay

260±5℃,10S,1time

Pre-treatment 30℃,70%RH,168Hrs

/ 20


Packaging:

3000k 3V 60MA 3014 LED Chip 0.2W For Backlight Car Screen Light 2

 Cautions:

The encapsulated material of the LEDs is silicone. Therefore the LEDs have a soft surface on the

Top of package. The pressure to the top surface will be influence to the reliability of the LEDs. Precautions Should be taken to avoid the strong pressure on the encapsulated part. So when use the picking up nozzle,The pressure on the silicone resin should be proper.

Soldering iron :
 When hand soldering, the temperature of the iron must less than 300℃ for 3 seconds
 The hand solder should be done only one times


SMT Reflow Soldering Instructions SMT :
Reflow soldering should not be done more than two times
When soldering , do not put stress on the LEDs during heating
The recommended reflow soldering profile as following

3000k 3V 60MA 3014 LED Chip 0.2W For Backlight Car Screen Light 3

Handling Precautions :
Handle the component along the side surface by using forceps or appropriate tools
Do not directly touch or handle the silicone lens surface. It may damage the internal circuitry
Do not stack together assembled PCBs containing LEDs. Impact may scratch the silicone lens or damage the internal circuitry



3000k 3V 60MA 3014 LED Chip 0.2W For Backlight Car Screen Light 43000k 3V 60MA 3014 LED Chip 0.2W For Backlight Car Screen Light 53000k 3V 60MA 3014 LED Chip 0.2W For Backlight Car Screen Light 63000k 3V 60MA 3014 LED Chip 0.2W For Backlight Car Screen Light 7



Product features:



Adopt good quality chip and frame ,antistatic good stability Ultra low attenuation

High brightness ,low attenuation high color rendering

Minimum 70,80,90 95 CRI options

Strong welding and good stability undead light

Product series and company logo on the front

CE ROHS LM80 Certification



Production Process:



3000k 3V 60MA 3014 LED Chip 0.2W For Backlight Car Screen Light 8
