3V 65-70LM SMD 2835 LED Chips Led Full Spectrum 150MA Hotel Lighting

Basic Information
Place of Origin: SUZHOU
Brand Name: PHOENIX
Certification: LM80 CE ROHS
Model Number: 2835
Minimum Order Quantity: 4000PCS
Price: Negotiation
Packaging Details: 4000PCS /ROLL
Delivery Time: 7-10 DAYS
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: 800KK PER MONTH
Name: SMD LED 2835 CCT: 2700K 3000K 4000K 6500k
Nput Voltage(V): 3V Luminous Flux(lm): 65-70lm/70-75LM
Warranty(Year): 2 Years Application: Home Decoration Lamp
Power: 150MA Working Time (hours): 20000
Operating Temperature(℃): -40-85 Viewing Angle(°):: 120
High Light:

70LM 2835 LED Chip

,

150MA 2835 LED Chip

,

SMD 2835 chips led full spectrum

Application Introduction:



LED bulb lamp adopts the existing interface mode, i.e. screw port and socket mode (E26 E27 E14 B22, etc.), and even imitates the shape of incandescent bulb in order to meet people's use habits. Based on the unidirectional light-emitting principle of LED, the designer has made changes in the lamp structure, so that the light distribution curve of LED bulb lamp basically converges with the point light source of incandescent lamp.



High-efficiency 3V 150MA 2835 65-70LM 6500K PCT SMD LED CHIP Strip Supermall Hotel lighting



Quick details:



Input Voltage(V): 3V
Warranty(Year): 2-Year
Type: Smd Led Chip 2835
Lighting solutions service: Lighting and circuitry design
Luminous Efficacy(lm/w): 150lm/w
Lifespan (hours): 50000
Working Time (hours): 20000
Chip Material: INGAN
Emitting Color: 2700-6500K
Power: 0.5W
Viewing Angle(°): 120 Degree
Color Rendering Index(Ra): 80
Packing bag: 220*240nm
Place of Origin: Suzhou ,jiangsu
Application: LED STRIP
Package Type: Suface Mount Package
Forward Current: 150MA
Size: 2.8*3.5*0.65mm
Packing: 4000 Pcs/Roll


Product specification:



Package Structure

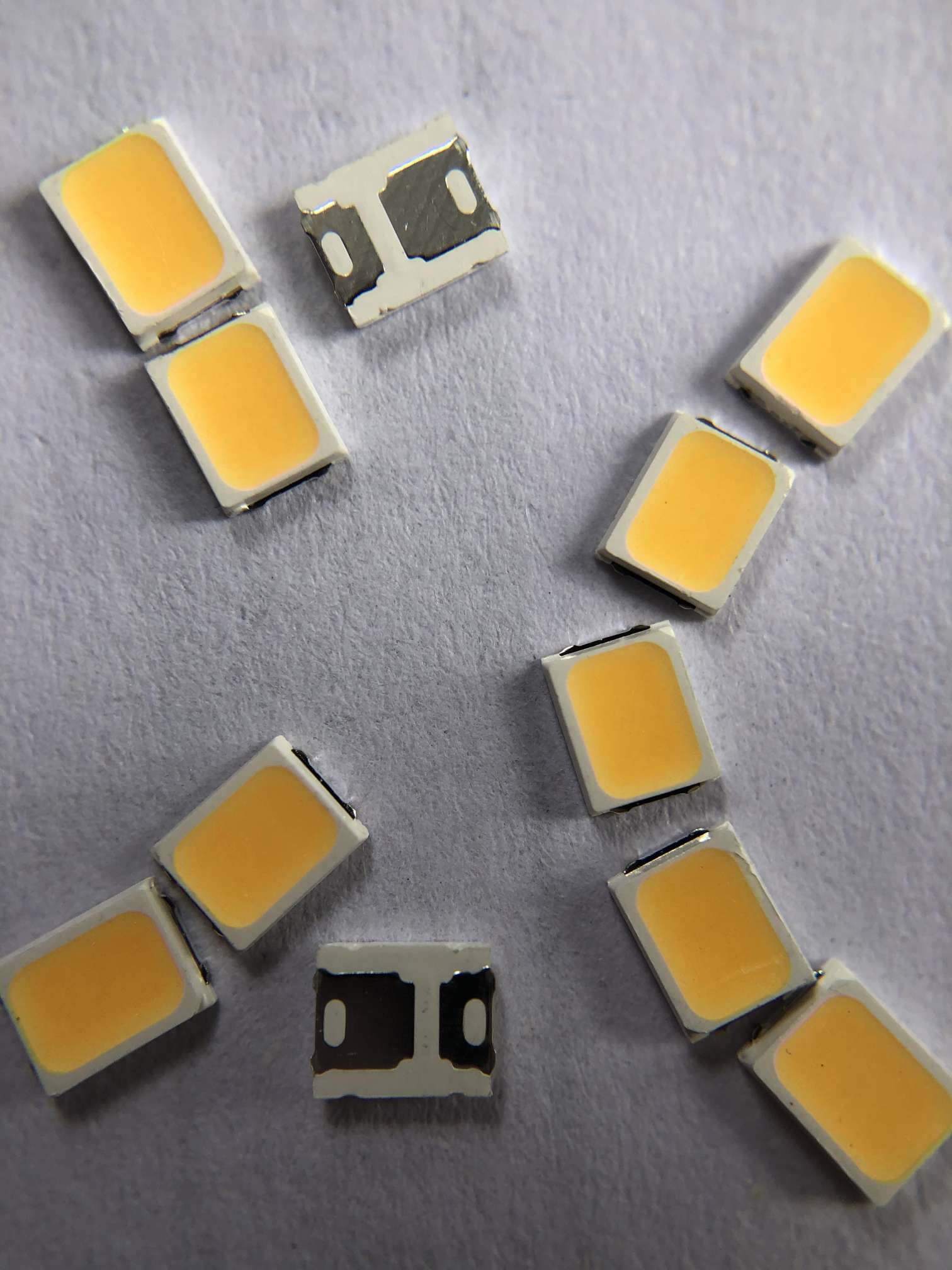

3V 65-70LM SMD 2835 LED Chips Led Full Spectrum 150MA Hotel Lighting 0

Absolute Maximum Ratings



Item Symbol Absolute Maximum Ratings Unit
Forward Current IF 150 mA
Reverse Voltage Vr 5 V
Pulsed Forward Current IFP* 180 mA
Power dissipation PD 0.5 W
Operating Temperature TOP -40~85
Storage Temperature TST -40~85
Electrostatic Discharge ESD 2000(HBM) V
Junction Temperature Tj 120
LED Thermal resistance Rth s-j 33 ℃/W



Typical Electro-Optical characteristics curves:



3V 65-70LM SMD 2835 LED Chips Led Full Spectrum 150MA Hotel Lighting 1

LED Reliability Test List



Test Item Test Conditions Standard Qty(Pcs) Ac/Re
Life Test 25℃,1000Hrs@150mA / 20 0/1
High Temperature 85℃,1000Hrs@150mA / 20 0/1
Low Temperature -40℃,1000Hrs@150mA / 20 0/1
High Humidity Heat

85℃,85%RH,

1000Hrs@150mA

/ 20 0/1
Low Temperature Storage -40℃,1000Hrs

JEITA ED-4701

200 202

20 0/1
High Temperature Storage 100℃,1000Hrs

JEITA ED-4701

200 201

20 0/1
Temperature Cycle (-40'C 30mins --25'C(5mins)--100'C(30mins) ,Temp changing rate:3+/-0.6'C/min)

JEITA ED-4701

100 105

20 0/1
Thermal Shock -40'C(15mins) --100'C(15mins),changing time <5mins ,300C MIL-STD-202G 20 0/1

Pulse Life Test



Tp=1ms,DC=0.1,D=Tp/T @ 3×150mA / 20 0/1
ESD Test(HBM) 2000V,200V/Step, Forward & Reverse Test both 3times

AEC

(Q101-001)

20 0/1
Soldering Resistance

260±5℃,10S,3times

Pre-treatment 30℃,70%RH

JEITA ED-4701

300 302

20 0/1
Reflow IV Decay

260±5℃,10S,1time

Pre-treatment 30℃,70%RH,168Hrs

/ 20 0/1
Judgment Criteria
Forward Voltage VF VF Max-Increase < 1.1x
Reverse Current IR IR Max-Increase < IRmax
Luminous Intensity IV IV Decay < 40%

※Solder ability test criteria:coverage is not less than 95%

Note:Measurement shall be taken after the tested samples have been returned to normal ambient conditions (generally after two hours)



Packaging:

3V 65-70LM SMD 2835 LED Chips Led Full Spectrum 150MA Hotel Lighting 2

Cautions:

The encapsulated material of the LEDs is silicone. Therefore the LEDs have a soft surface on the

Top of package. The pressure to the top surface will be influence to the reliability of the LEDs. Precautions Should be taken to avoid the strong pressure on the encapsulated part. So when use the picking up nozzle,The pressure on the silicone resin should be proper.


Soldering iron :
 When hand soldering, the temperature of the iron must less than 300℃ for 3 seconds
 The hand solder should be done only one times

SMT Reflow Soldering Instructions SMT :
Reflow soldering should not be done more than two times
When soldering , do not put stress on the LEDs during heating
The recommended reflow soldering profile as following

3V 65-70LM SMD 2835 LED Chips Led Full Spectrum 150MA Hotel Lighting 3

Handling Precautions :
Handle the component along the side surface by using forceps or appropriate tools
Do not directly touch or handle the silicone lens surface. It may damage the internal circuitry
Do not stack together assembled PCBs containing LEDs. Impact may scratch the silicone lens or damage the internal circuitry



3V 65-70LM SMD 2835 LED Chips Led Full Spectrum 150MA Hotel Lighting 43V 65-70LM SMD 2835 LED Chips Led Full Spectrum 150MA Hotel Lighting 53V 65-70LM SMD 2835 LED Chips Led Full Spectrum 150MA Hotel Lighting 63V 65-70LM SMD 2835 LED Chips Led Full Spectrum 150MA Hotel Lighting 7



Product features:



Adopt good quality chip and frame ,antistatic good stability Ultra low attenuation

High brightness ,low attenuation high color rendering

Minimum 70,80,90 95 CRI options

Strong welding and good stability undead light

Product series and company logo on the front

CE ROHS LM80 Certification



Production Process:



3V 65-70LM SMD 2835 LED Chips Led Full Spectrum 150MA Hotel Lighting 8
