| Place of Origin: | SUZHOU |
|---|---|
| Brand Name: | PHOENIX |
| Certification: | LM80 CE ROHS |
| Model Number: | 3014 |
| Minimum Order Quantity: | 4000PCS |
| Price: | Negotiation |
| Packaging Details: | 4000PCS /ROLL |
| Delivery Time: | 7-10 DAYS |
| Payment Terms: | Western Union, MoneyGram, T/T |
| Supply Ability: | 800KK PER MONTH |

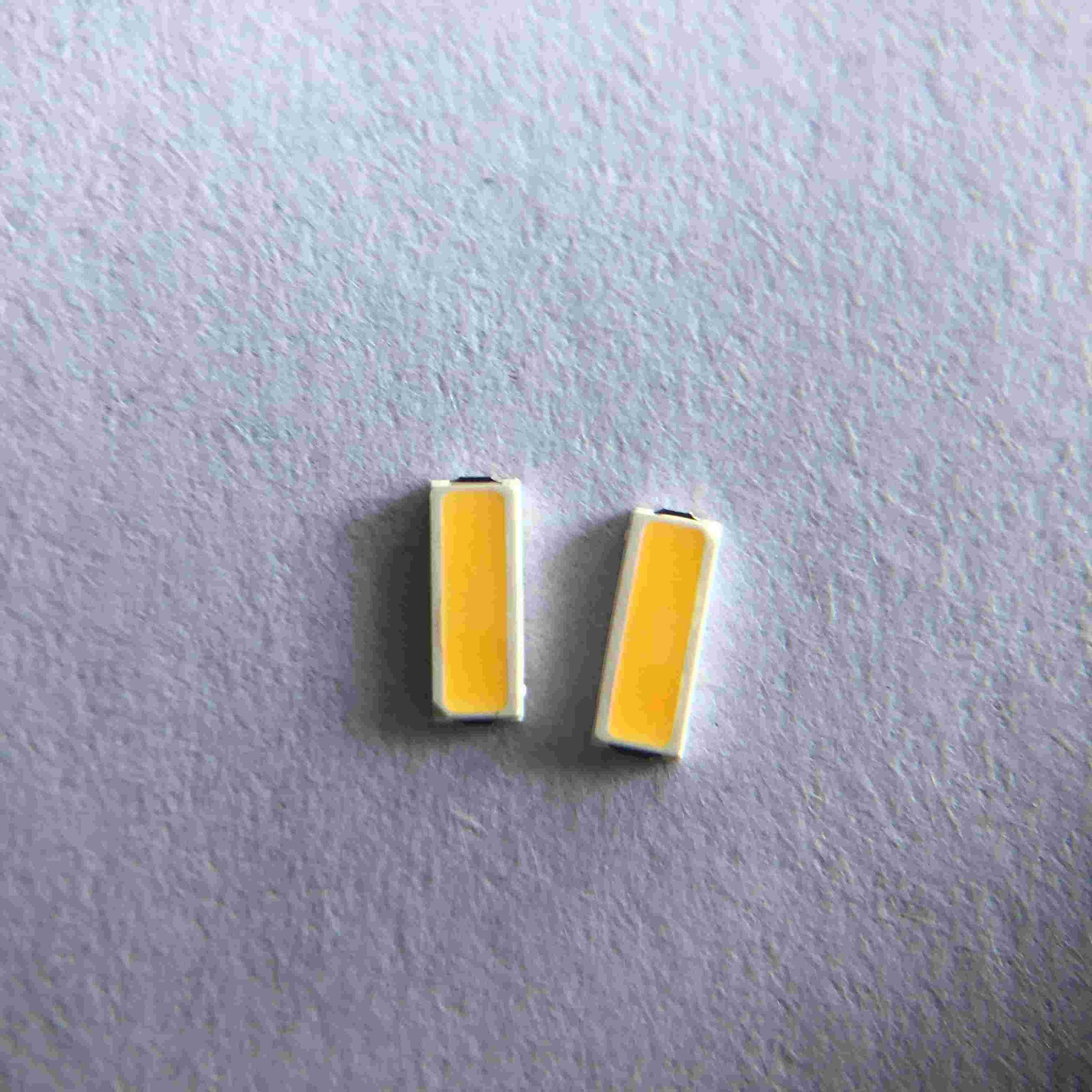

| Name: | SMD LED 3014 | Application: | Car Interior Decorative Lamp |
|---|---|---|---|
| Nput Voltage(V): | 3V | Luminous Flux(lm): | 24-26lm |
| Power: | 60MA | CCT: | 6000-6500K |
| Warranty(Year): | 2 Years | Working Time (hours): | 20000 |
| Operating Temperature(℃): | -40-85 | Viewing Angle(°):: | 120 |
Quick details:
| Input Voltage(V): | 3V |
| Warranty(Year): | 2-Year |
| Type: | Smd Led Chip 3014 |
| Lighting solutions service: | Lighting and circuitry design |
| Luminous Efficacy(lm/w): | 150lm/w |
| Lifespan (hours): | 50000 |
| Working Time (hours): | 20000 |
| Chip Material: | INGAN |
| Emitting Color: | 6000-6500K |
| Power: | 0.2W |
| Viewing Angle(°): | 120 Degree |
| Color Rendering Index(Ra): | 70 |
| Packing bag: | 220*240nm |
| Place of Origin: | Suzhou ,jiangsu |
| Application: | car backlight |
| Package Type: | Suface Mount Package |
| Forward Current: | 60MA |
| Size: | 3.0*1.4*0.65mm |
| Packing: | 4000 Pcs/Roll |
Product specification:
Package Structure
Absolute Maximum Ratings
| Parameter | Symbol | Test condition | Min | Typ | Max | Unit |
| Forward Voltage | VF | IF=60mA | 2.7 | - | 3.3 | V |
| Luminous Flux | ф | IF=60mA | 24 | - | 26 | LM |
| Color Temperature | CCT | IF=60mA | 2500 | - | 6500 | K |
| Reverse current | VR | VR=7V | 0 | μA | ||
| Color Rending Index | Ra | IF=60mA | 80 | - | ||
| View Angle | 2θ1/2 | IF=60mA | 120 | deg | ||
Typical Electro-Optical characteristics curves:
LED Reliability Test List
| Test Item | Test Conditions | Standard | Qty (Pcs) |
| Life Test | 25℃,1000Hrs@60mA | / | 20 |
| High Temperature | 85℃,1000Hrs@60mA | / | 20 |
| Low Temperature | -40℃,1000Hrs@60mA | / | 20 |
| High Humidity Heat |
85℃,85%RH, 1000Hrs@60mA |
/ | 20 |
| Low Temperature Storage | -40℃,1000Hrs |
JEITA ED-4701 200 202 |
20 |
| High Temperature Storage | 100℃,1000Hrs |
JEITA ED-4701 200 201 |
20 |
| Temperature Cycle | (-40'C 30mins --25'C(5mins)--100'C(30mins) ,Temp changing rate:3+/-0.6'C/min) |
JEITA ED-4701 100 105 |
20 |
| Thermal Shock | -40'C(15mins) --100'C(15mins),changing time <5mins ,300C | MIL-STD-202G | 20 |
| Pulse Life Test | Tp=1ms,DC=0.1,D=Tp/T @ 3×60mA | / | 20 |
| ESD Test(HBM) | 2000V,200V/Step, Forward & Reverse Test both 3times |
AEC (Q101-001) |
20 |
| Soldering Resistance |
260±5℃,10S,3times Pre-treatment 30℃,70%RH |
JEITA ED-4701 300 302 |
20 |
| Reflow IV Decay |
260±5℃,10S,1time Pre-treatment 30℃,70%RH,168Hrs |
/ | 20 |
Production Process:
