| Name: | SMD LED 2835 White Color | Cct: | 3000K 4000K 6500K |
|---|---|---|---|
| Power: | 0.2W | Luminous Flux(lm): | 26-28lm |
| Color Rendering Index(Ra): | 80 | Nput Voltage(V): | 3v |
| Working Time (hours): | 20000 | Warranty(Year): | 2 Years |
| Operating Temperature(℃): | -40-85 | Lamp Luminous Efficiency(lm/w): | 140 |
| High Light: | White 2835 SMD LED CHIP,White PCT SMD LED CHIP,0.2W 2835 SMD LED CHIP |
||

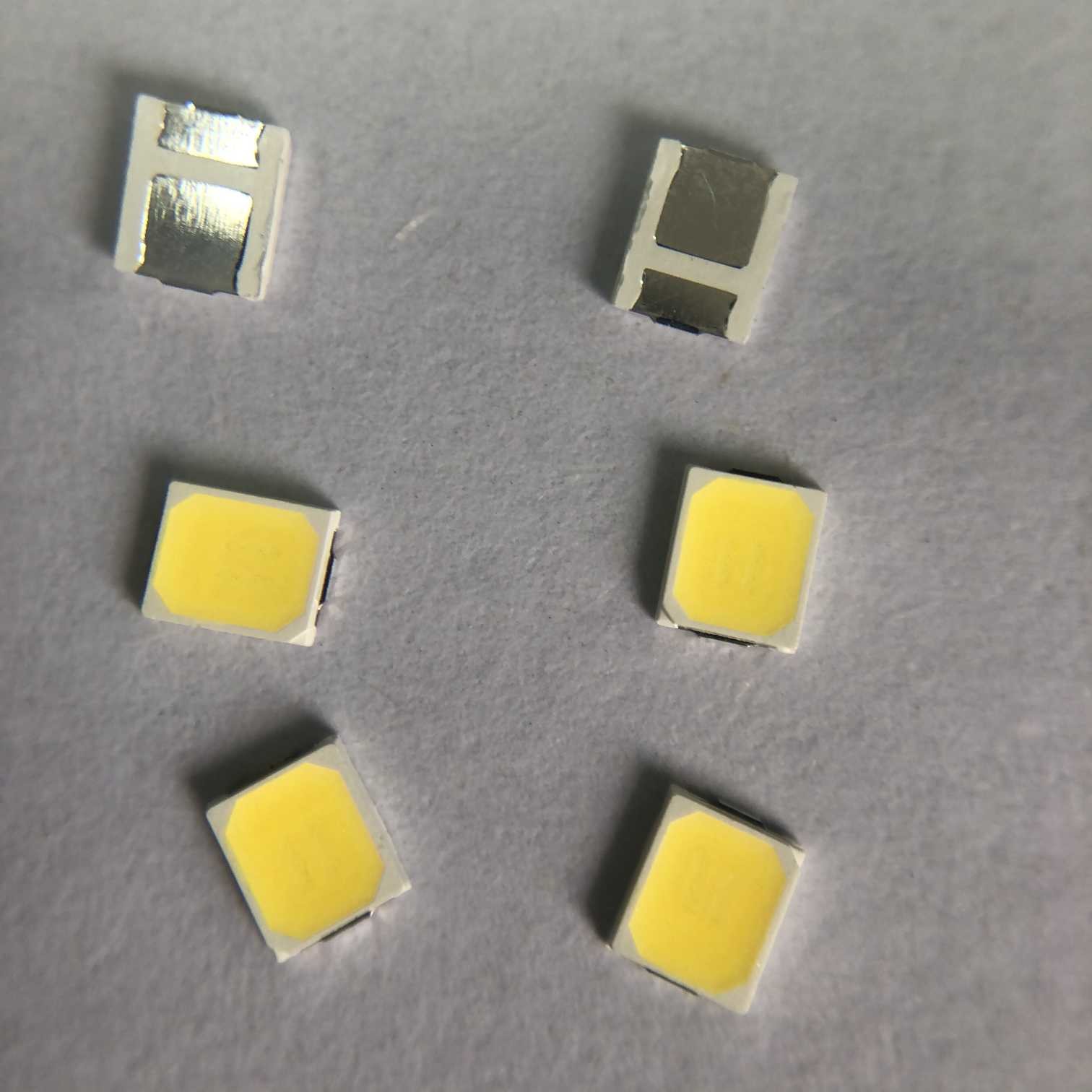

LM80 3V 0.2W 2835 26-28LM White Color PCT SMD LED CHIP FOR LIGHT
SMD means surface mounted diode. This is a better technology than the first generation DIP LEDs. The SMD type LEDs are mounted on an aluminum substrate and enveloped in an epoxy resin.
Power LED bulbs or integrated LED downlights usually contain 3 or 4 high powered LED chips which combine to create a focused beam of light, usually with a 25 or 40 degree beam angle. SMD LED bulbs are made up of a cluster of very small LED chips, usually around 20 per bulb
2. Package Structure
Unit: mm Tolerance: +/-0.1mm
3. Product Specification
| Item | Specification | Material | Quantity |
| Chip | InGaN | InGaN | 1 in 1 |
| Reflector( | White | PPA | |
| Frame | C2680 | Silver-Plated Copper | |
| Gold wire | 0.9mil | ALLOY | |
| Phosphor | Yellow | YAG | |
| Encapsulant | MilkyWhiteIte | Resin | |
| Carrier tape | According to EIA 481-1A specs | Conductive black tape | 4000pcs per reel |
| Reel | According to EIA 481-1A specs | Conductive black | |
| Label | Repsn standard | Paper | |
| Packing bag | 220x240mm | Aluminum laminated bag/ no-zipper | One reel one bag |
| Carton | Repsn standard | Paper | Non-specified |
4. Typical Electro-Optical characteristics curves
5.LED Reliability Test List
|
Test Item
|
Test Conditions
|
Standard
|
Qty(Pcs)
|
|
Life Test
|
25℃,1000Hrs@60mA | / | 20 |
|
High Temperature
|
85℃,1000Hrs@60mA | / | 20 |
|
Low Temperature
|
-40℃,1000Hrs@60mA | / | 20 |
|
High Humidity Heat
|
85℃,85%RH, 1000Hrs@60mA |
/ | 20 |
|
Low Temperature Storage
|
-40℃,1000Hrs |
JEITA ED-4701 200 202 |
20 |
|
High Temperature Storage
|
100℃,1000Hrs |
JEITA ED-4701 200 201 |
20 |
|
Temperature Cycle
|
(-40'C 30mins --25'C(5mins)--100'C(30mins) ,Temp changing rate:3+/-0.6'C/min) |
JEITA ED-4701 100 105 |
20 |
|
Thermal Shock
|
-40'C(15mins) --100'C(15mins),changing time <5mins ,300C | MIL-STD-202G | 20 |
|
Pulse Life Test
|
Tp=1ms,DC=0.1,D=Tp/T @ 3×60mA,1000Hrs | / | 20 |
|
ESD Test(HBM)
|
2000V,200V/Step, Forward & Reverse Test both 3times |
AEC (Q101-001) |
20 |
|
Soldering resistance |
260±5℃,10S,3times Pre-treatment 30℃,70%RH |
JEITA ED-4701 300 302 |
20 |
|
Reflow IV Decay
|
260±5℃,10S,1time Pre-treatment 30℃,70%RH,168Hrs |
/ | 20 |
