| Place of Origin: | SUZHOU |
|---|---|
| Brand Name: | PHOENIX |
| Certification: | LM80 CE ROHS |
| Model Number: | 2835 |
| Minimum Order Quantity: | 16000PCS |
| Price: | Negotiation |
| Packaging Details: | 4000PCS /ROLL |
| Delivery Time: | 7-10 DAYS |
| Payment Terms: | Western Union, MoneyGram, T/T |
| Supply Ability: | 400KK PER MONTH |
| Name: | SMD LED 2835 White Color | Cct: | 3000K 4000K 6500K |
|---|---|---|---|
| Luminous Flux(lm): | 26-28lm | Power: | 0.2W |
| Nput Voltage(V): | 3v | Working Time (hours): | 20000 |
| Warranty(Year): | 2 Years | Color Rendering Index(Ra): | 80 |
| Operating Temperature(℃): | -40-85 | Lamp Luminous Efficiency(lm/w): | 140 |
| High Light: | 6500K PCT 2835 SMD LED CHIP,INDICATOR LIGHT 2835 SMD LED CHIP,6000K PCT 2835 SMD LED CHIP |
||

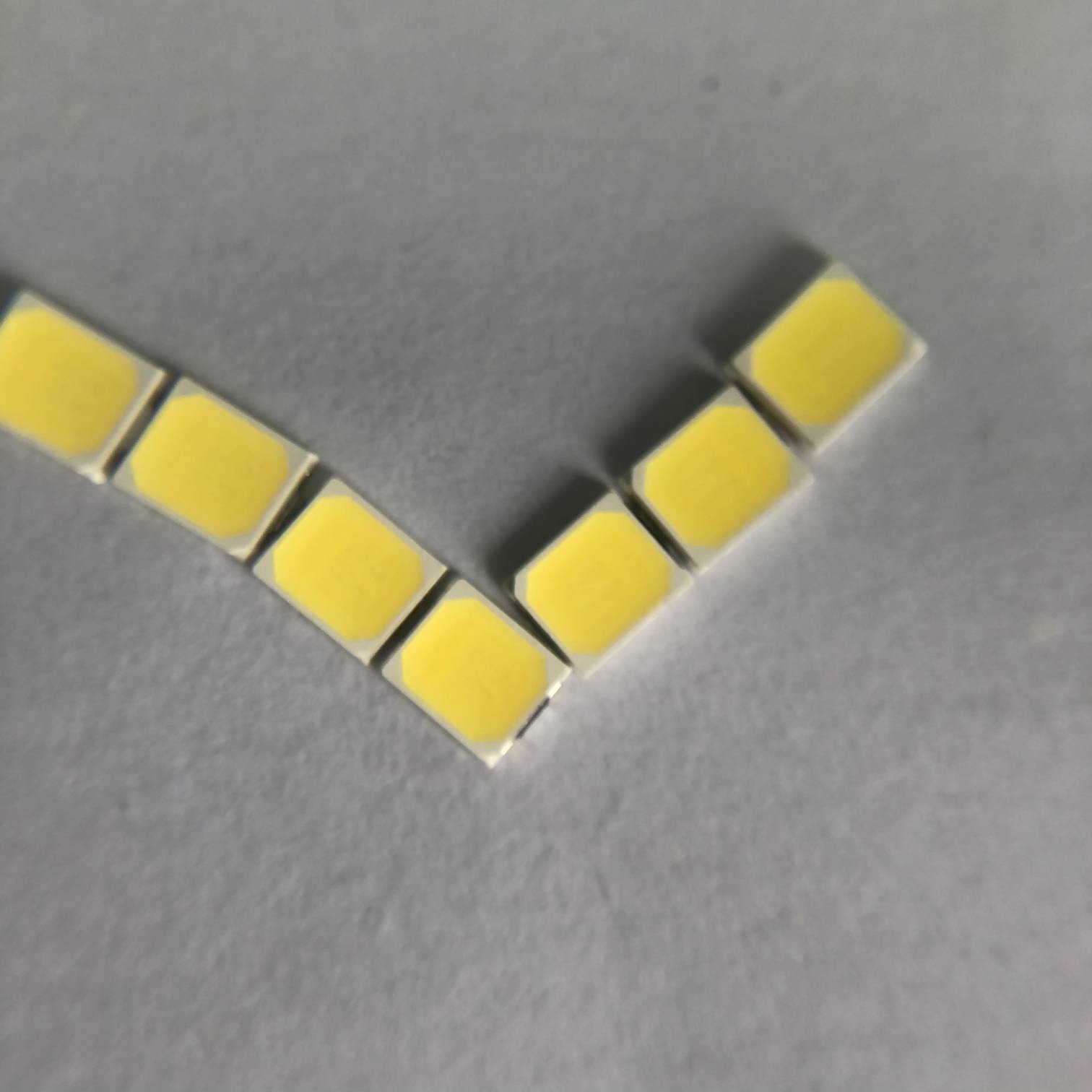

2835 3V 60M 26-28LM 6000-6500K PCT SMD LED CHIP FOR INDICATOR LIGHT
3V 60MA 0.2W 2835 26-28LM 3000K 4000K 6500K PCT SMD LED FOR INDICATOR LIGHT
At present, CNC machine tools produced at home and abroad use many indicators. The corresponding working state of the machine tool is judged by the status of the indicator. The correct indication of the indicator plays an inestimable role in the normal operation of the machine tool, especially the machine tool operation panel. The current machine tool operation panel is composed of many buttons, and each button has an indicator light to indicate its status. The quality of the indicator light directly affects whether the working state of the machine tool can be judged by its indication, so judging the quality of the indicator light has become an important part of machine tool maintenance
1. Product Freatures
.Efficacy of 140 lm/W typical for 3000K, 80CRI
.Adopt good quality chip and frame ,antistatic good stability Ultra low attenuation
.High brightness ,low attenuation high color rendering
. Minimum 70, 80, 90 and 95 CRI options
.Strong welding and good stability undead light
.Product series and company logo on the front
. CE ROHS LM80 Certification
.Viewing angle:120 deg
.RoHS compliant lead-free soldering compatible
2. Package Structure
Unit: mm Tolerance: +/-0.1mm
3. Product Specification
| Item | Specification | Material | Quantity |
| Chip | InGaN | InGaN | 1 in 1 |
| Reflector( | White | PPA | |
| Frame | C2680 | Silver-Plated Copper | |
| Gold wire | 0.9mil | ALLOY | |
| Phosphor | Yellow | YAG | |
| Encapsulant | MilkyWhiteIte | Resin | |
| Carrier tape | According to EIA 481-1A specs | Conductive black tape | 4000pcs per reel |
| Reel | According to EIA 481-1A specs | Conductive black | |
| Label | Repsn standard | Paper | |
| Packing bag | 220x240mm | Aluminum laminated bag/ no-zipper | One reel one bag |
| Carton | Repsn standard | Paper | Non-specified |
4. Typical Electro-Optical characteristics curves
5.LED Reliability Test List
Test Item
| Test Conditions
| Standard
| Qty(Pcs)
|
Life Test
| 25℃,1000Hrs@60mA | / | 20 |
High Temperature
| 85℃,1000Hrs@60mA | / | 20 |
Low Temperature
| -40℃,1000Hrs@60mA | / | 20 |
High Humidity Heat
| 85℃,85%RH, 1000Hrs@60mA | / | 20 |
Low Temperature Storage
| -40℃,1000Hrs | JEITA ED-4701 200 202 | 20 |
High Temperature Storage
| 100℃,1000Hrs | JEITA ED-4701 200 201 | 20 |
Temperature Cycle
| (-40'C 30mins --25'C(5mins)--100'C(30mins) ,Temp changing rate:3+/-0.6'C/min) | JEITA ED-4701 100 105 | 20 |
Thermal Shock
| -40'C(15mins) --100'C(15mins),changing time <5mins ,300C | MIL-STD-202G | 20 |
Pulse Life Test
| Tp=1ms,DC=0.1,D=Tp/T @ 3×60mA,1000Hrs | / | 20 |
ESD Test(HBM)
| 2000V,200V/Step, Forward & Reverse Test both 3times | AEC (Q101-001) | 20 |
Soldering resistance | 260±5℃,10S,3times Pre-treatment 30℃,70%RH | JEITA ED-4701 300 302 | 20 |
Reflow IV Decay
| 260±5℃,10S,1time Pre-treatment 30℃,70%RH,168Hrs | / | 20 |
