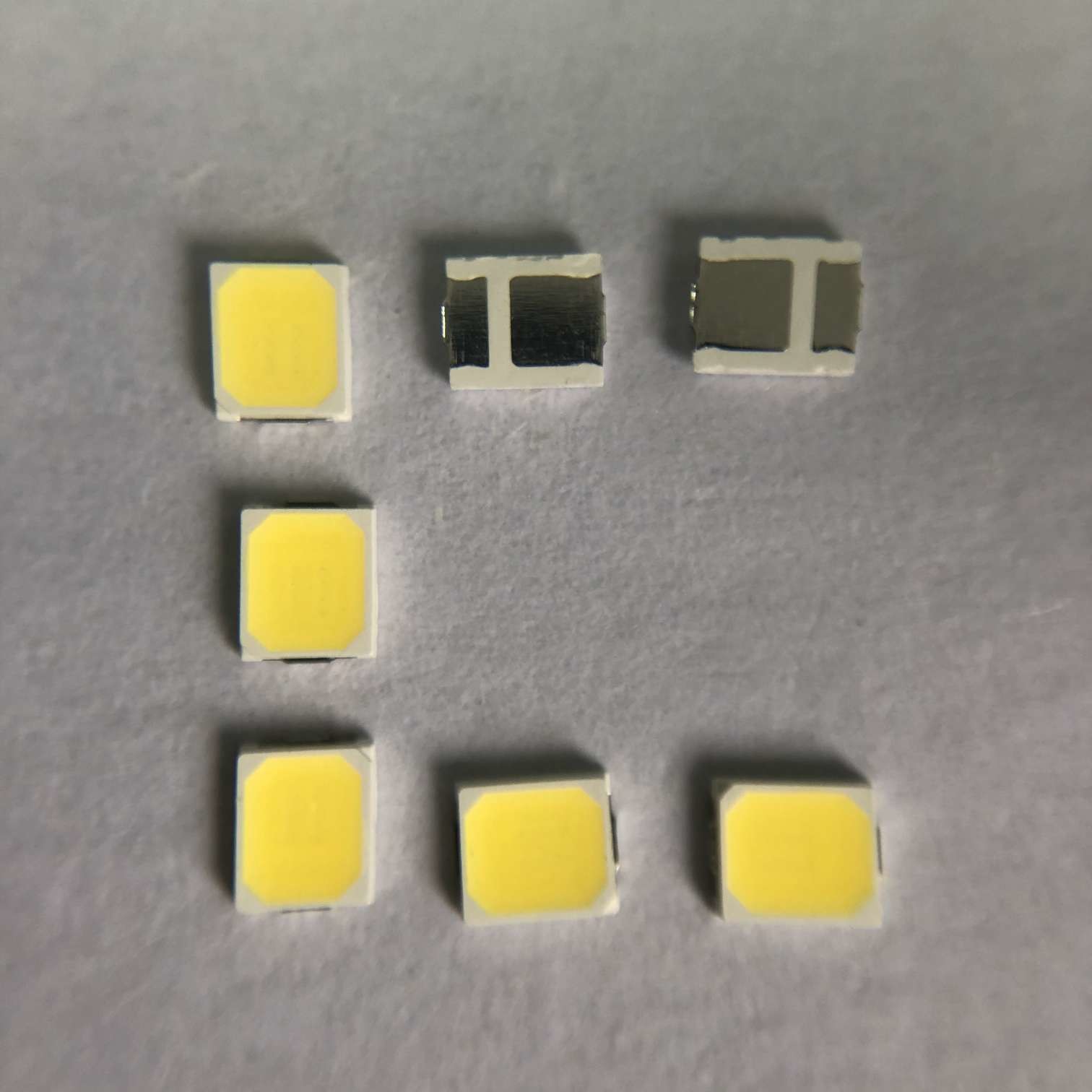

Protecting Eyes Lights 3V 2835 Chip Bright Led 4800 - 5200K

Basic Information
Place of Origin: SUZHOU
Brand Name: PHOENIX
Certification: LM80 CE ROHS
Model Number: 2835
Minimum Order Quantity: 4000PCS
Price: Negotiation
Packaging Details: 4000PCS /ROLL
Delivery Time: 7-10 DAYS
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: 800KK PER MONTH
Name: SMD LED 2835 RED Color Application: Study Light
Nput Voltage(V): 3V Power: 150ma
Luminous Flux(lm): 60-65 Lm Wld(nm): 620-625nm
Warranty(Year): 2 Years Working Time (hours): 20000
Operating Temperature(℃): -40-85 Viewing Angle(°):: 120
High Light:

Protecting Eyes Lights 2835 Led Chip

,

Protecting Eyes Lights 2835 Chip

,

5200K Chip 2835

3V 2835 4800-5200K Chip Bright Led For Protecting Eyes Lights



Application Introduction:



Typically, the forward voltage of an LED is between 1.8 and 3.3 volts. It varies by the color of the LED. A red LED typically drops around 1.7 to 2.0 volts, but since both voltage drop and light frequency increase with band gap, a blue LED may drop around 3 to 3.3 volts.


 Quick details:



Input Voltage(V): 3V
Warranty(Year): 2-Year
Type: Smd Led Chip 2835
Lighting solutions service: Lighting and circuitry design
Luminous Efficacy(lm/w): 60-65lm
Lifespan (hours): 50000
Working Time (hours): 20000
Chip Material: INGAN
Emitting Color: Red
Power: 0.5W
Viewing Angle(°): 120 Degree
Color Rendering Index(Ra): 80
Color Temperature: 620-625NM
Place of Origin: Suzhou ,jiangsu
Application: Household appliances and traffic lights
Package Type: Suface Mount Package
Forward Current: 150MA
Size: 2.8*3.5*0.65mm
Packing: 4000 Pcs/Roll


Product specification:

Package Structure:

Protecting Eyes Lights 3V 2835 Chip Bright Led 4800 - 5200K 0




Absolute Maximum Ratings:



Item Symbol Absolute Maximum Ratings Unit
Forward Current IF 150 mA
Reverse Voltage Vr 5 V
Pulsed Forward Current IFP* 180 mA
Power dissipation PD 0.5 W
Operating Temperature TOP -40~85
Storage Temperature TST -40~85
Electrostatic Discharge ESD 2000(HBM) V
Junction Temperature Tj 120
LED Thermal resistance Rth s-j 33 ℃/W



Typical Electro-Optical characteristics curves:

Protecting Eyes Lights 3V 2835 Chip Bright Led 4800 - 5200K 1

LED Reliability Test List:



Test Item Test Conditions Standard Qty(Pcs) Ac/Re
Life Test 25℃,1000Hrs@150mA / 20 0/1
High Temperature 85℃,1000Hrs@150mA / 20 0/1
Low Temperature -40℃,1000Hrs@150mA / 20 0/1
High Humidity Heat

85℃,85%RH,

1000Hrs@150mA

/ 20 0/1
Low Temperature Storage -40℃,1000Hrs

JEITA ED-4701

200 202

20 0/1
High Temperature Storage 100℃,1000Hrs

JEITA ED-4701

200 201

20 0/1
Temperature Cycle (-40'C 30mins --25'C(5mins)--100'C(30mins) ,Temp changing rate:3+/-0.6'C/min)

JEITA ED-4701

100 105

20 0/1
Thermal Shock -40'C(15mins) --100'C(15mins),changing time <5mins ,300C MIL-STD-202G 20 0/1

Pulse Life Test



Tp=1ms,DC=0.1,D=Tp/T @ 3×150mA / 20 0/1
ESD Test(HBM) 2000V,200V/Step, Forward & Reverse Test both 3times

AEC

(Q101-001)

20 0/1
Soldering Resistance

260±5℃,10S,3times

Pre-treatment 30℃,70%RH

JEITA ED-4701

300 302

20 0/1
Reflow IV Decay

260±5℃,10S,1time

Pre-treatment 30℃,70%RH,168Hrs

/ 20 0/1
Judgment Criteria
Forward Voltage VF VF Max-Increase < 1.1x
Reverse Current IR IR Max-Increase < IRmax
Luminous Intensity IV IV Decay < 40%

※Solder ability test criteria:coverage is not less than 95%

Note:Measurement shall be taken after the tested samples have been returned to normal ambient conditions (generally after two hours)





Product features:



Adopt good quality chip and frame ,antistatic good stability Ultra low attenuation

High brightness ,low attenuation high color rendering

Minimum 70,80,90 95 CRI options

Strong welding and good stability undead light

Product series and company logo on the front

CE ROHS LM80 Certification



Production Process:



Protecting Eyes Lights 3V 2835 Chip Bright Led 4800 - 5200K 2
