| Name: | SMD LED 2835 White Color | Nput Voltage(V): | 18v |
|---|---|---|---|
| Power: | 30MA | Luminous Flux(lm): | 75-85lm |
| Application: | Bulb Lamp | CCT: | 3000k 4000k 6500k |
| Warranty(Year): | 2 Years | Working Time (hours): | 20000 |
| Operating Temperature(℃): | -40-85 | Viewing Angle(°):: | 120 |
| High Light: | SMD LED 2835 For Bulb Lamp,SMD 2835 LED For Bulb Lamp,18v 30ma SMD 2835 LED |
||

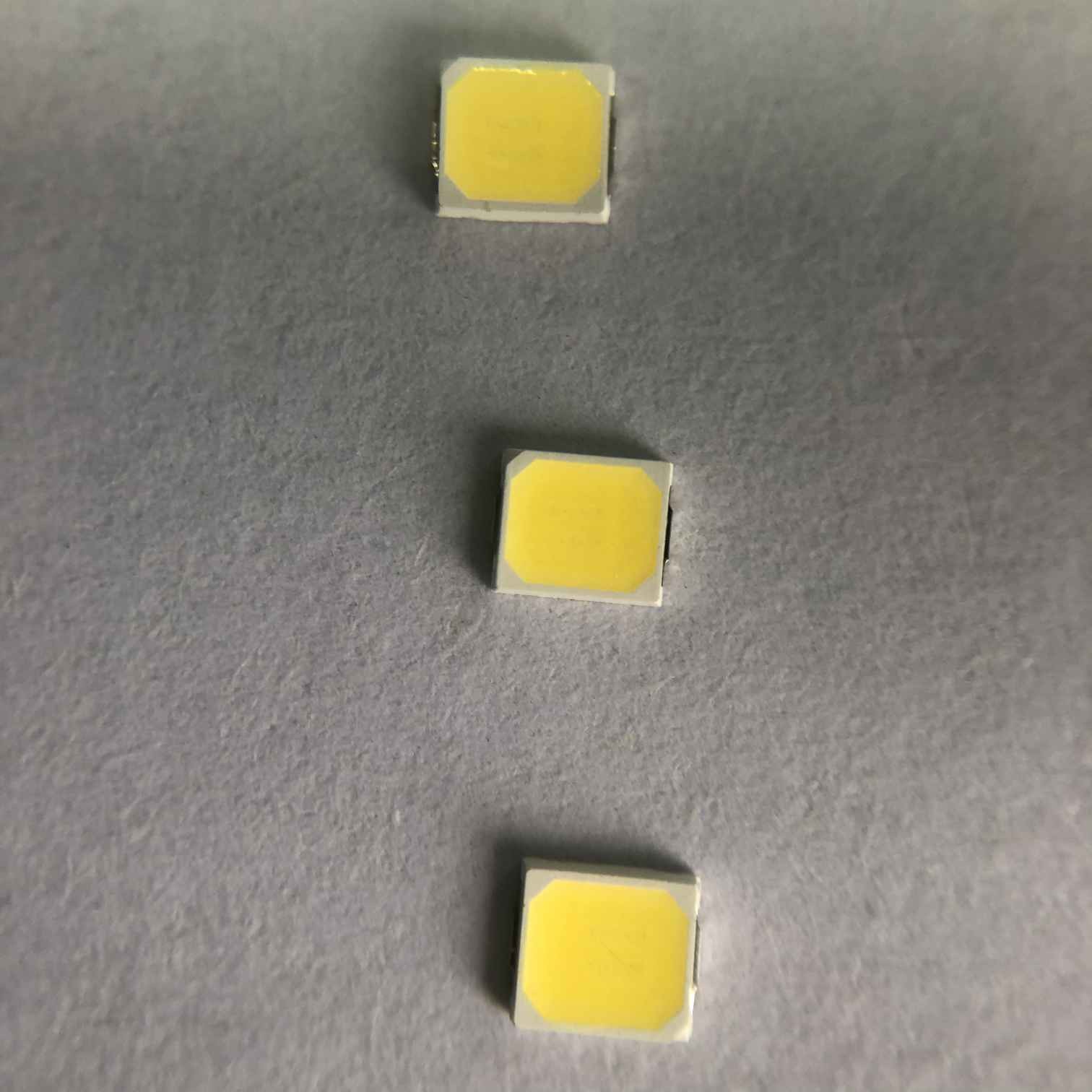

Energy Saving 18v 30ma SMD 2835 LED Chip For Bulb Lamp
Application Introduction:
High brightness 18v 30ma SMD LED 2835 for bulb lamp
Quick details:
| Input Voltage(V): | 18V |
| Warranty(Year): | 2-Year |
| Type: | Smd Led Chip 2835 |
| Lighting solutions service: | Lighting and circuitry design |
| Luminous Efficacy(lm/w): | 160lm/w |
| Lifespan (hours): | 50000 |
| Working Time (hours): | 20000 |
| Chip Material: | INGAN |
| Emitting Color: | 3000K 4000K 6500K |
| Power: | 0.5W |
| Viewing Angle(°): | 120 Degree |
| Color Rendering Index(Ra): | 80 |
| Packing bag: | 220*240nm |
| Place of Origin: | Suzhou ,jiangsu |
| Application: | LED STRIP |
| Package Type: | Suface Mount Package |
| Forward Current: | 30MA |
| Size: | 2.8*3.5*0.65mm |
| Packing: | 4000 Pcs/Roll |
Product specification:
Package Structure
Absolute Maximum Ratings
| Power dissipation | PD | 0.5 | W |
| Continuous forward current | IFmax | 30 | mA |
| Peak forward current (1/10 duty cycle 10ms pulse width) | IFP | 40 | mA |
| Item | Symbol | Maximum | Unit |
| Reverse voltage | VR | 5 | V |
| Electrostatic Discharge (HBM) | ESD | 2000 | V |
| Operating temperature range | Topr | -40 to +85 | ℃ |
| Storage temperature range | Tstg | -40 to +85 | ℃ |
| Led yunction temperature | Tj | 120 | ℃ |
Optical/Electrical Characterization:
| CCT | STEPS | x | y | a | b | θ |
| ERP F6500 | 1 | 0.313 | 0.337 | 0.00223 | 0.00095 | 58.383 |
| ERP F5000 | 1 | 0.346 | 0.359 | 0.00274 | 0.00118 | 59.617 |
| ERP F4000 | 1 | 0.38 | 0.38 | 0.00313 | 0.00134 | 54 |
| ERP F3000 | 1 | 0.44 | 0.403 | 0.00278 | 0.00136 | 53.167 |
| ERP P2700 | 1 | 0.463 | 0.42 | 0.00258 | 0.00137 | 57.283 |
| CCT | STEPS | CX | CY | a | b | theta |
| 2700K | 1 | 0.4578 | 0.4101 | 0.0027 | 0.0014 | 53.7 |
| 3000K | 1 | 0.4338 | 0.403 | 0.00278 | 0.00136 | 53.22 |
| 3500K | 1 | 0.4073 | 0.3917 | 0.00309 | 0.00138 | 54 |
| 4000K | 1 | 0.3818 | 0.3797 | 0.00313 | 0.00134 | 53.72 |
| 5000K | 1 | 0.3447 | 0.3553 | 0.00274 | 0.00118 | 59.62 |
| 5700K | 1 | 0.3287 | 0.3417 | 0.00249 | 0.00107 | 59.09 |
| 6500K | 1 | 0.3123 | 0.3282 | 0.00223 | 0.00095 | 58.57 |
Typical Electro-Optical characteristics curves:
LED Reliability Test List
| No. | Item | Test Conditions |
Test hr/cycle/time |
Sample Q’ty |
Ac∕Re | |
| 1 | Solder Heat | TEMP:260℃±5℃；5±1 sec | 2 times | 30 pcs | 0∕1 | |
| 2 | Solder ability Test ※ | TEMP:235℃±5℃；3±1 sec | 1 time | 5 pcs | 0∕1 | |
| 3 | Temperature Cycle |
H:+100℃ 30min. ∫5min. L:-40℃ 30min. |
100 cycles | 20 pcs | 0∕1 | |
| 4 | Thermal Shock |
H:+100℃ 5min. ∫ L:-40℃ 5min. |
50 cycles | 20 pcs | 0∕1 | |
| 5 | High Temperature Storage | TEMP:100℃ | 1000 hrs | 20 pcs | 0∕1 | |
| 6 | Low Temperature Storage | TEMP:-40℃ | 1000 hrs | 20 pcs | 0∕1 | |
| 7 | DC Operating Life | IF＝IFmax | 1000 hrs | 20 pcs | 0∕1 | |
| 8 |
High Temperature High Humidity |
85℃∕85％R.H. | 1000 hrs | 20 pcs | 0∕1 | |
| 9 | Shocking test |
100～2000Hz ；98.1m/s2 X,Y,Z direction |
2 hrs | 20 pcs | 0∕1 | |
| 10 | Dropping test | Put on pallet ；height:75cm | 3 times | 20 pcs | 0∕1 | |
| Judgment Criteria | ||||||
| Forward Voltage VF | VF Max-Increase < 1.1x | |||||
| Reverse Current IR | IR Max-Increase < IRmax | |||||
| Luminous Intensity IV | IV Decay < 40% | |||||
|
※Solder ability test criteria:coverage is not less than 95% Note:Measurement shall be taken after the tested samples have been returned to normal ambient conditions (generally after two hours) |
||||||
Product features:
Adopt good quality chip and frame ,antistatic good stability Ultra low attenuation
High brightness ,low attenuation high color rendering
Minimum 70,80,90 95 CRI options
Strong welding and good stability undead light
Product series and company logo on the front
CE ROHS LM80 Certification
