3v 2835 Red Led Green Yellow Chip Bright For Police Light

Basic Information
Place of Origin: SUZHOU
Brand Name: PHOENIX
Certification: LM80 CE ROHS
Model Number: 2835
Minimum Order Quantity: 4000PCS
Price: Negotiation
Packaging Details: 4000PCS /ROLL
Delivery Time: 7-10 DAYS
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: 800KK PER MONTH
Name: SMD LED 2835 RED GREEN YELLOW Application: Traffic Signal Light
Wld(nm): 620-625nm 420-450NM Nput Voltage(V): 3V
Power: 150ma Luminous Flux(lm): 60-65 Lm
Warranty(Year): 2 Years Operating Temperature(℃): -40-85
Viewing Angle(°):: 120 Working Time (hours): 20000
High Light:

3v 2835 Red Led

,

Police Light 2835 Red Led

,

Police Light SMD LED 2835

3v 2835 Red Grren Yellow Chip Bright Led For Police Light



Application Introduction:



The lens of road traffic signal lamp is made of polycarbonate with high transmittance, so that it will not fade significantly within 10 years of service life.The structure of road traffic signal lamp shell is required to be made of aluminum die-casting, open type; The shell surface is sprayed with plastic, and the color is black. It is beautiful and light, easy for maintenance and installation.All seals in the road traffic signal lamp shall be made of silicone rubber, so that it will not be aged and hardened under high and low temperature environment within 10 years of service






 Quick details:



Input Voltage(V): 3V
Warranty(Year): 2-Year
Type: Smd Led Chip 2835
Lighting solutions service: Lighting and circuitry design
Luminous Efficacy(lm/w): 60-65lm
Lifespan (hours): 50000
Working Time (hours): 20000
Chip Material: INGAN
Emitting Color: Red
Power: 0.5W
Viewing Angle(°): 120 Degree
Color Rendering Index(Ra): 80
Color Temperature: 620-625NM
Place of Origin: Suzhou ,jiangsu
Application: Household appliances and traffic lights
Package Type: Suface Mount Package
Forward Current: 150MA
Size: 2.8*3.5*0.65mm
Packing: 4000 Pcs/Roll


Product specification:

Package Structure:

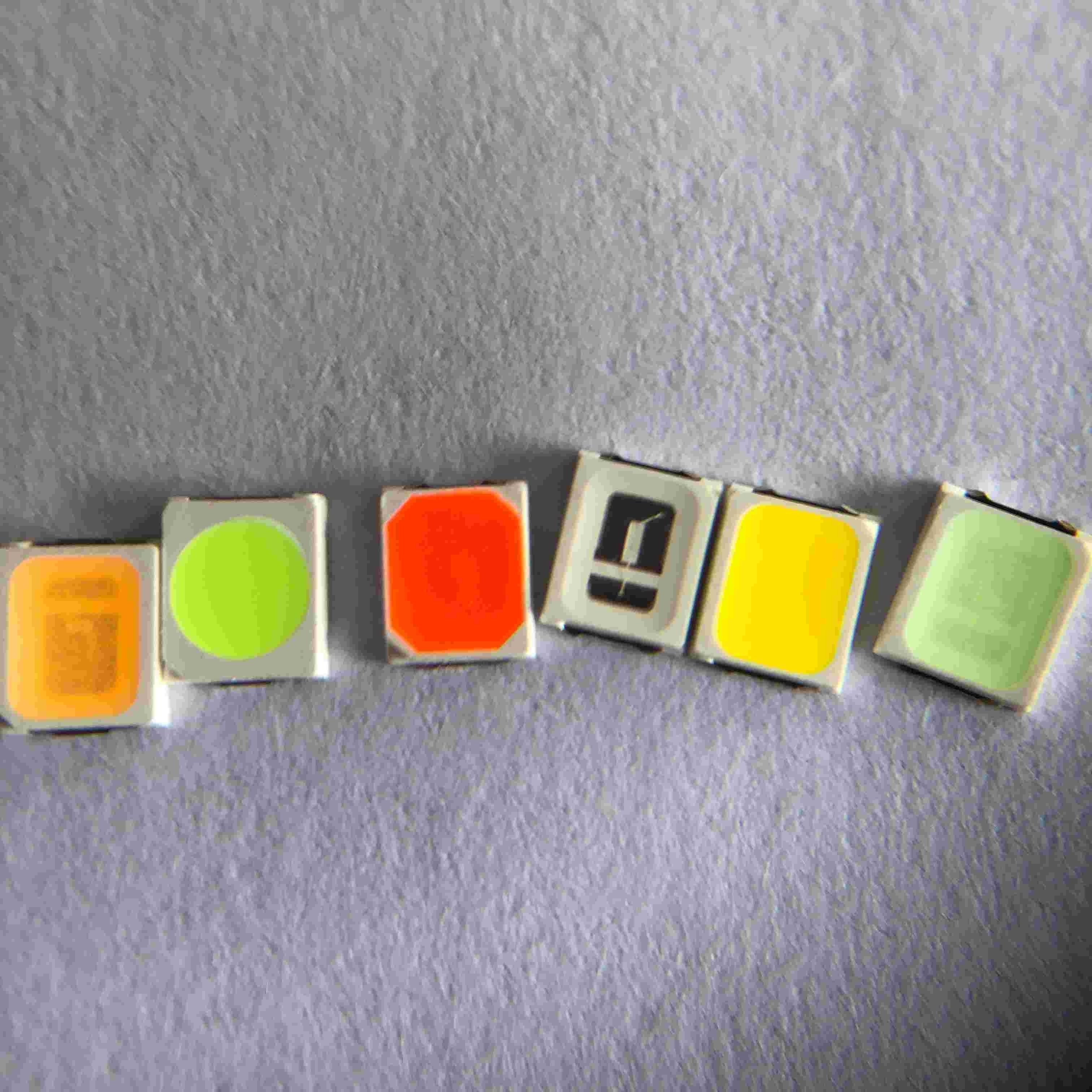

3v 2835 Red Led Green Yellow Chip Bright For Police Light 0




Absolute Maximum Ratings:



Item Symbol Absolute Maximum Ratings Unit
Forward Current IF 150 mA
Reverse Voltage Vr 5 V
Pulsed Forward Current IFP* 180 mA
Power dissipation PD 0.5 W
Operating Temperature TOP -40~85
Storage Temperature TST -40~85
Electrostatic Discharge ESD 2000(HBM) V
Junction Temperature Tj 120
LED Thermal resistance Rth s-j 33 ℃/W



Typical Electro-Optical characteristics curves:

3v 2835 Red Led Green Yellow Chip Bright For Police Light 1

LED Reliability Test List:



Test Item Test Conditions Standard Qty(Pcs) Ac/Re
Life Test 25℃,1000Hrs@150mA / 20 0/1
High Temperature 85℃,1000Hrs@150mA / 20 0/1
Low Temperature -40℃,1000Hrs@150mA / 20 0/1
High Humidity Heat

85℃,85%RH,

1000Hrs@150mA

/ 20 0/1
Low Temperature Storage -40℃,1000Hrs

JEITA ED-4701

200 202

20 0/1
High Temperature Storage 100℃,1000Hrs

JEITA ED-4701

200 201

20 0/1
Temperature Cycle (-40'C 30mins --25'C(5mins)--100'C(30mins) ,Temp changing rate:3+/-0.6'C/min)

JEITA ED-4701

100 105

20 0/1
Thermal Shock -40'C(15mins) --100'C(15mins),changing time <5mins ,300C MIL-STD-202G 20 0/1

Pulse Life Test



Tp=1ms,DC=0.1,D=Tp/T @ 3×150mA / 20 0/1
ESD Test(HBM) 2000V,200V/Step, Forward & Reverse Test both 3times

AEC

(Q101-001)

20 0/1
Soldering Resistance

260±5℃,10S,3times

Pre-treatment 30℃,70%RH

JEITA ED-4701

300 302

20 0/1
Reflow IV Decay

260±5℃,10S,1time

Pre-treatment 30℃,70%RH,168Hrs

/ 20 0/1
Judgment Criteria
Forward Voltage VF VF Max-Increase < 1.1x
Reverse Current IR IR Max-Increase < IRmax
Luminous Intensity IV IV Decay < 40%

※Solder ability test criteria:coverage is not less than 95%

Note:Measurement shall be taken after the tested samples have been returned to normal ambient conditions (generally after two hours)



Packaging:

3v 2835 Red Led Green Yellow Chip Bright For Police Light 2

Cautions:
The encapsulated material of the LEDs is silicone. Therefore the LEDs have a soft surface on the
Top of package. The pressure to the top surface will be influence to the reliability of the LEDs. Precautions Should be taken to avoid the strong pressure on the encapsulated part. So when use the picking up nozzle,The pressure on the silicone resin should be proper.

Soldering iron :
When hand soldering, the temperature of the iron must less than 300℃ for 3 seconds
The hand solder should be done only one times

SMT Reflow Soldering Instructions SMT :
Reflow soldering should not be done more than two times
When soldering , do not put stress on the LEDs during heating
The recommended reflow soldering profile as following



3v 2835 Red Led Green Yellow Chip Bright For Police Light 3



Product features:



Adopt good quality chip and frame ,antistatic good stability Ultra low attenuation

High brightness ,low attenuation high color rendering

Minimum 70,80,90 95 CRI options

Strong welding and good stability undead light

Product series and company logo on the front

CE ROHS LM80 Certification



Production Process:



3v 2835 Red Led Green Yellow Chip Bright For Police Light 4
