| Place of Origin: | SUZHOU |
|---|---|
| Brand Name: | PHOENIX |
| Certification: | LM80 ISO-9001 ROHS |
| Model Number: | 1808 |
| Minimum Order Quantity: | 5000PCS |
| Price: | Negotiation |
| Packaging Details: | 4000PCS /ROLL |
| Delivery Time: | 7-10 DAYS |
| Payment Terms: | Western Union, MoneyGram, T/T |
| Supply Ability: | 800KK PER MONTH |
| Name: | SMD LED 1808 White Color | Luminous Flux(lm): | 6-9lm |
|---|---|---|---|
| Cct: | 2700K 3000K 6000K | Warranty(Year): | 2 Years |
| Power: | 0.06W | Working Time (hours): | 20000 |
| Color Rendering Index(Ra): | 80 | Nput Voltage(V): | 3v |
| Operating Temperature(℃): | -40-85 | Lamp Luminous Efficiency(lm/w): | 140 |
| High Light: | High Brightness LED 1808,Low Heat LED 1808,3000K LED 1808 |
||

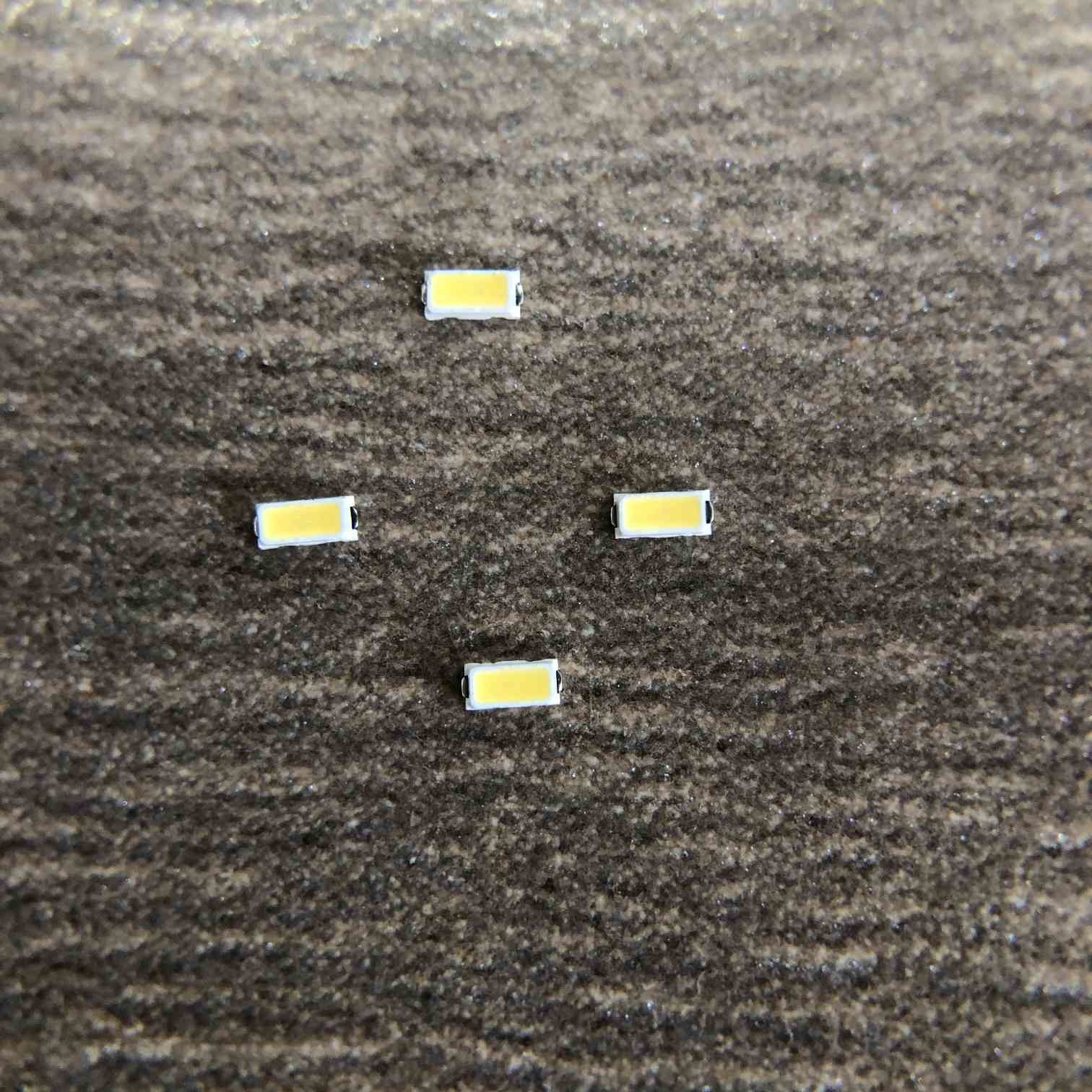

High Brightness Low Heat Long Life Focus Light 1808 For Led Strips
Long service life: under proper current and voltage, the service life of LED can reach more than 50000 hours.
High brightness, low heat, environmental protection: LED is made of non-toxic materials, unlike fluorescent lamps, which contain mercury, which will cause pollution. At the same time, LED can also be recycled.
The 1808 is one of the most mature LED packaging products in the automotive industry, which has been fully verified for its compact size and reliability. It is especially suitable for a variety of LED packaging standards. 1608 is available in many versions with different color and brightness levels.
Package Structure:
4.Absolute Maximum Ratings(Ta=25℃)
| Parameter | Symbol | Unit | |
| Rating | |||
| Power Dissipation | Pd | 60 | mW |
| Forward Current | IF | 20 | mA |
| Peak Forward Current | IFP | 30 | mA |
| Operating Temperature | Topr | -30~85 | ℃ |
| Storage Temperature | Tstg | -30~100 | ℃ |
| Junction temperature | Tj | 105 | ℃ |
| Electrostatic Discharge | ESD | 2000(HBM) | V |
5.Electrical and optical characteristics(Ta=25℃)
| Parameter | Symbol | Test condition | Min | Typ | Max | Unit |
| Forward Voltage | VF | IF=20mA | 2.7 | - | 3.3 | V |
| Luminous Flux | ф | IF=20mA | 6 | - | 9 | LM |
| Color Temperature | CCT | IF=20mA | 2500 | - | 6500 | K |
| Reverse current | VR | VR=7V | 0 | μA | ||
| Color Rending Index | Ra | IF=20mA | 90 | - | ||
| View Angle | 2θ1/2 | IF=20mA | 120 | deg | ||
6.Typical Electro-Optical Characteristics Curves(Ta=25℃)
| Parameter | Symbol | Test condition | Min | Typ | Max | Unit |
| Forward Voltage | VF | IF=20mA | 2.7 | - | 3.3 | V |
| Luminous Flux | ф | IF=20mA | 6 | - | 9 | LM |
| Color Temperature | CCT | IF=20mA | 2500 | - | 6500 | K |
| Reverse current | VR | VR=7V | 0 | μA | ||
| Color Rending Index | Ra | IF=20mA | 90 | - | ||
| View Angle | 2θ1/2 | IF=20mA | 120 | deg | ||
Typical Electro-Optical Characteristics Curves(Ta=25℃)
Rank list
IV Rank:
| Min | Max | Unit | Condition |
| 6 | 7 | LM | IF=20mA |
| 7 | 8 | ||
| 8 | 9 |
VF Rank:
| Min | Max | Unit | Condition |
| 2.7 | 2.8 | V | IF=20mA |
| 2.8 | 2.9 | ||
| 2.9 | 3.0 | ||
| 3.0 | 3.1 | ||
| 3.1 | 3.2 |
Reliability Test
| Test Item | Test Conditions | Standard | Qty (Pcs) |
| Life Test | 25℃,1000Hrs@150mA | / | 20 |
| High Temperature | 85℃,1000Hrs@150mA | / | 20 |
| Low Temperature | -40℃,1000Hrs@150mA | / | 20 |
| High Humidity Heat |
85℃,85%RH, 1000Hrs@150mA |
/ | 20 |
| Low Temperature Storage | -40℃,1000Hrs |
JEITA ED-4701 200 202 |
20 |
| High Temperature Storage | 100℃,1000Hrs |
JEITA ED-4701 200 201 |
20 |
| Temperature Cycle | (-40'C 30mins --25'C(5mins)--100'C(30mins) ,Temp changing rate:3+/-0.6'C/min) |
JEITA ED-4701 100 105 |
20 |
| Thermal Shock | -40'C(15mins) --100'C(15mins),changing time <5mins ,300C | MIL-STD-202G | 20 |
| Pulse Life Test | Tp=1ms,DC=0.1,D=Tp/T @ 3×150mA | / | 20 |
| ESD Test(HBM) | 2000V,200V/Step, Forward & Reverse Test both 3times |
AEC (Q101-001) |
20 |
| Soldering Resistance |
260±5℃,10S,3times Pre-treatment 30℃,70%RH |
JEITA ED-4701 300 302 |
20 |
| Reflow IV Decay |
260±5℃,10S,1time Pre-treatment 30℃,70%RH,168Hrs |
/ | 20 |
Cautions:
The encapsulated material of the LEDs is silicone. Therefore the LEDs have a soft surface on the
Top of package. The pressure to the top surface will be influence to the reliability of the LEDs. Precautions Should be taken to avoid the strong pressure on the encapsulated part. So when use the picking up nozzle,The pressure on the silicone resin should be proper.
Soldering iron :
When hand soldering, the temperature of the iron must less than 300℃ for 3 seconds
The hand solder should be done only one times
SMT Reflow Soldering Instructions SMT :
Reflow soldering should not be done more than two times
When soldering , do not put stress on the LEDs during heating
The recommended reflow soldering profile as following
Product features:
Adopt good quality chip and frame ,antistatic good stability Ultra low attenuation
High brightness ,low attenuation high color rendering
Minimum 70,80,90 95 CRI options
Strong welding and good stability undead light
Product series and company logo on the front
CE ROHS LM80 Certification
Product Process:
