| Place of Origin: | SUZHOU |
|---|---|
| Brand Name: | PHOENIX |
| Certification: | LM80 CE ROHS |
| Model Number: | 3030 |
| Minimum Order Quantity: | 4000PCS |
| Price: | Negotiation |
| Packaging Details: | 4000PCS /ROLL |
| Delivery Time: | 7-10 DAYS |
| Payment Terms: | Western Union, MoneyGram, T/T |
| Supply Ability: | 800KK PER MONTH |
| Name: | SMD LED 3030 White Color | Application: | Spotlighting |
|---|---|---|---|
| Nput Voltage(V): | 3V/ 6V | Power: | 1w |
| Color Rendering Index(Ra): | 80 | Cct: | 6500K 5700K |
| Luminous Flux(lm): | 170-180lm | Warranty(Year): | 2 Years |
| Working Time (hours): | 20000 | Operating Temperature(℃): | -40-85 |
| High Light: | 180lm 3030 LED Chip,green 3030 LED Chip,6v green led chip |
||
Application Introduction:
Spotlight is a typical modern school lighting without main lamp and fixed scale, which can create an indoor lighting atmosphere. If a row of small spotlights are combined, the light can change wonderful patterns. Since the small spotlight can change the angle freely, the effect of combined lighting is also changeable. The light of the spotlight is soft and elegant. It can also be used for local daylighting to set off the atmosphere.

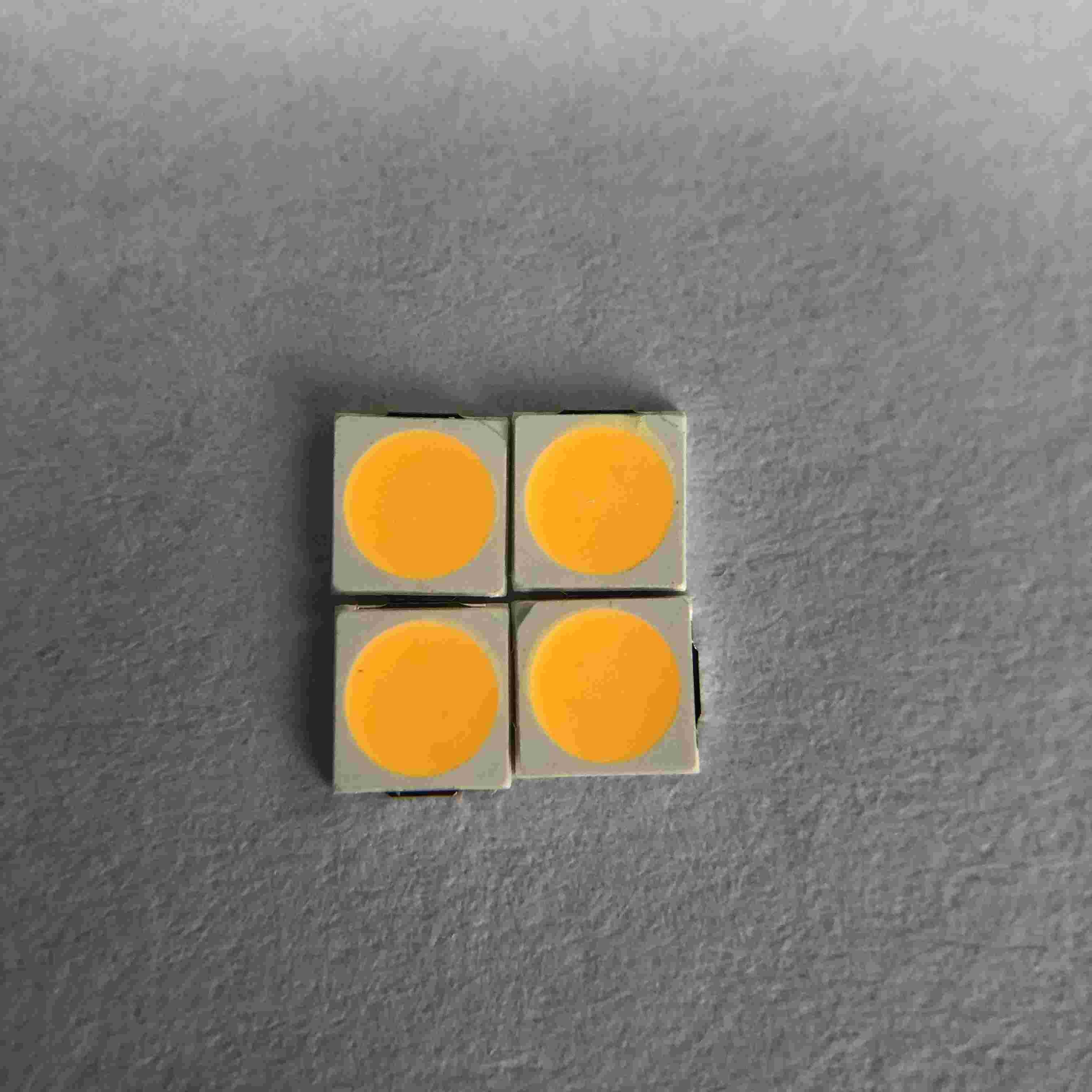

SMD LED Chip 3030 EMC 3V 6V Ultra Bright 170-180lm for high-end lighting application
Quick details:
| Input Voltage(V): | 3V/6V |
| Warranty(Year): | 2-Year |
| Type: | Smd Led Chip 3030 |
| Lighting solutions service: | Lighting and circuitry design |
| Luminous Efficacy(lm/w): | 180LM |
| Lifespan (hours): | 50000 |
| Working Time (hours): | 20000 |
| Chip Material: | INGAN |
| Emitting Color: | Warm White/Natural White/COOL WHITE |
| Power: | 1W |
| Viewing Angle(°): | 120 Degree |
| Color Rendering Index(Ra): | 80 |
| Color Temperature: | 5700K 6500K |
| Place of Origin: | Suzhou ,jiangsu |
| Application: | street light |
| Package Type: | Suface Mount Package |
| Forward Current: | 300MA /150MA |
| Size: | 3.0*3.0*0.6mm |
| Packing: | 4000 Pcs/Roll |
Product specification:
Package Structure:
Absolute Maximum Ratings:
| Item | Symbol | Absolute Maximum Ratings | Unit |
| Forward Current | IF | 500 | mA |
| Reverse Voltage | Vr | 5 | V |
| Pulsed Forward Current | IFP* | 600 | mA |
| Power dissipation | PD | 1.5 | W |
| Operating Temperature | TOP | -40~85 | ℃ |
| Storage Temperature | TST | -40~85 | ℃ |
| Electrostatic Discharge | ESD | 2000(HBM) | V |
| Junction Temperature | Tj | 120 | ℃ |
| LED Thermal resistance | Rth s-j | 30 | ℃/W |
Bin Structure:
Typical Electro-Optical characteristics curves:
Packaging:
Cautions:
The encapsulated material of the LEDs is silicone. Therefore the LEDs have a soft surface on the
Top of package. The pressure to the top surface will be influence to the reliability of the LEDs. Precautions Should be taken to avoid the strong pressure on the encapsulated part. So when use the picking up nozzle,The pressure on the silicone resin should be proper.
Soldering iron :
When hand soldering, the temperature of the iron must less than 300℃ for 3 seconds
The hand solder should be done only one times
SMT Reflow Soldering Instructions SMT :
Reflow soldering should not be done more than two times
When soldering , do not put stress on the LEDs during heating
The recommended reflow soldering profile as following
Product features:
Adopt good quality chip and frame ,antistatic good stability Ultra low attenuation
High brightness ,low attenuation high color rendering
Minimum 70,80,90 95 CRI options
Strong welding and good stability undead light
Product series and company logo on the front
CE ROHS LM80 Certification
Production Process:
