3V 2W 3030 LED Chip Light Fixtures Blue Red

Basic Information
Place of Origin: SUZHOU
Brand Name: PHOENIX
Certification: ANSI/ESDA/JEDEC JS-001
Model Number: CERAMIC3030
Minimum Order Quantity: 5000PCS
Price: Negotiation
Packaging Details: 4000PCS /ROLL
Delivery Time: 7-10 DAYS
Payment Terms: Western Union, MoneyGram, T/T
Supply Ability: 4000K PER MONTH
Name: SMD LED CERAMIC3030 BIUE Nput Voltage(V): 3v
Luminous Flux(lm): 390-400lm Power: 2W
Warranty(Year): 2 Years Working Time (hours): 20000
Operating Temperature(℃): -40-85
High Light:

Red 3030 LED Chip


Blue 3030 LED Chip


3030 led chip light fixtures


Dark blue (450 nm) and ultra red (660 nm) versions provide the light required for photosynthesis
The far infrared (730 nm) version can control the whole process of plants from germination to vegetative growth and then to flowerin
EQ white light can realize humanized working environment High energy efficiency( μ mol/J) Maximum drive current high,unique innovative radiation pattern. Paired with a customized phosphor solution, this latest LED illumi-nates plants evenly for uniform growth while facili-tating the increase of non-converted red photons to deliver superior fixture level efficacy.
Additionally,this high-power LED provides excellent reliability,ong lifetime, proven robustness and low thermal
Maximum Ratings

Parameter Symbol Values

Operating Temperature





-40 °C

120 °C

Storage Temperature





-40 °C

120 °C

Junction Temperature T max. 135 °C
Junction Temperature absolute* Tjabs max. 150 °C
Forward current I



100 mA

1800 mA

Surge Current

t ≤ 10 µs; D = 0.005 %; TJ = 25 °C

FS max. 2000 mA
Reverse voltage 2) V   Not designed for reverse operation

ESD withstand voltage

acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 3B)

ESD   8 kV

This is verified by testing 30 pieces. Pass criteria: No catastrophic failures allowed, luminous flux must be better than L70B50 after 1000 h.



I = 700 mA; TJ = 25 °C

Parameter                                                                       Symbol                                                   Values

Viewing angle at 50% IV 2φ                          typ.                          140 °

Forward Voltage 4)

I = 700 mA

VF                         min.                          2.80 V

                              typ.                           2.90 V

                              max.                         3.20 V

Reverse current 2) IR                Not designed for reverse operation
Electrical thermal resistance junction/solderpoint with efficiency ηe = 65 % RthJS elec.            typ.                       1.6 K / W


Forward Voltage Groups

Group Forward Voltage 4)

I = 700 mA


2.8v 2.9v
2.9v 3.0v
3.0v 3.1v
3.1v 3.2v

Relative Spectral Emission

Irel = f (λ); IF = 700 mA; TJ = 25 °C


Radiation Characteristics

Irel = f (ϕ); TJ = 25 °C

3V 2W 3030 LED Chip Light Fixtures Blue Red 0




3V 2W 3030 LED Chip Light Fixtures Blue Red 1

3V 2W 3030 LED Chip Light Fixtures Blue Red 2

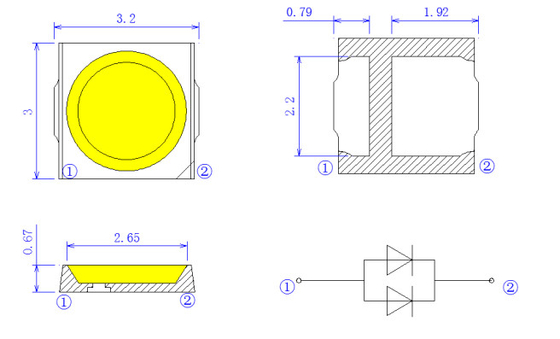

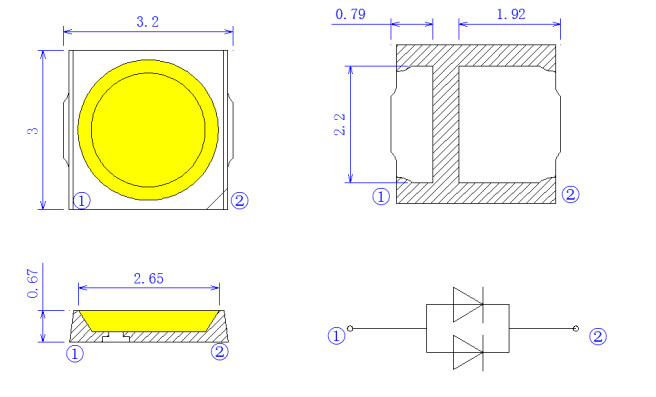

Dimensional Drawing

3V 2W 3030 LED Chip Light Fixtures Blue Red 3


Further Information:                                                  29.0 mg


Approximate Weight: Package marking:                  Cathode

Corrosion test:                                                          Class:   3B

                                                                                 Test condition: 40°C / 90 % RH / 15 ppm H2S / 14 days (stricter than IEC 60068-2-43)

ESD advice:                                                             The device is protected by ESD device which is connected in parallel to the Chip.


Reflow Soldering Profile

Product complies to MSL Level 2 acc. to JEDEC J-STD-020E

3V 2W 3030 LED Chip Light Fixtures Blue Red 4


Profile Feature                                              Symbol                 Pb-Free (SnAgCu) Assembly       Unit

                                                                                         Minimum Recommendation Maximum

Ramp-up rate to preheat*)                               2

25 °C to 150 °C

3 K/s

tS                                                                    60                           100

T to T

120 s

Ramp-up rate to peak*)                                                                   2

T to T

3 K/s
Liquidus temperature TL                                                                217   °C
Time above liquidus temperature tL                                               80 100 s
Peak temperature T                                                                       245 260 °C

Time within 5 °C of the specified peak               10                        20

temperature TP - 5 K

30 s

Ramp-down rate*                                                                            3

T to 100 °C

6 K/s


25 °C to TP

480 s


All temperatures refer to the center of the package, measured on the top of the component * slope calculation DT/Dt: Dt max. 5 s; fulfillment for the whole T-
